Engine displacement
50
2
Model
MX
3
Year
2004
4
Trim
MX
5
Parts Catalog
Engine
6
Parts Diagram
Parts Catalog
Decal and operator's handbooks
by
Left crankcase
Engine
1
2
2
2
2
3
4
6
7
8
9
10
1
Engine AM6-EU-2
AP8222807
Not Available
1
Engine AM6-EU-2
AP8276018
Not Available
2
Hose clip D.8
AP8202177
Not Available
3
Kick - start
AP8222503
Not Available
4
Gear lever
AP8235162
£125,00 Unit Price incl. VAT
5
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
6
Hex socket screw M8x120
AP8150093
£13,28 Unit Price incl. VAT
7
Hex socket screw M12 X 108
AP8150338
£14,32 Unit Price incl. VAT
8
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
9
Rubber spacer
AP8220205
Not Available
10
pipe
AP8206977
Not Available

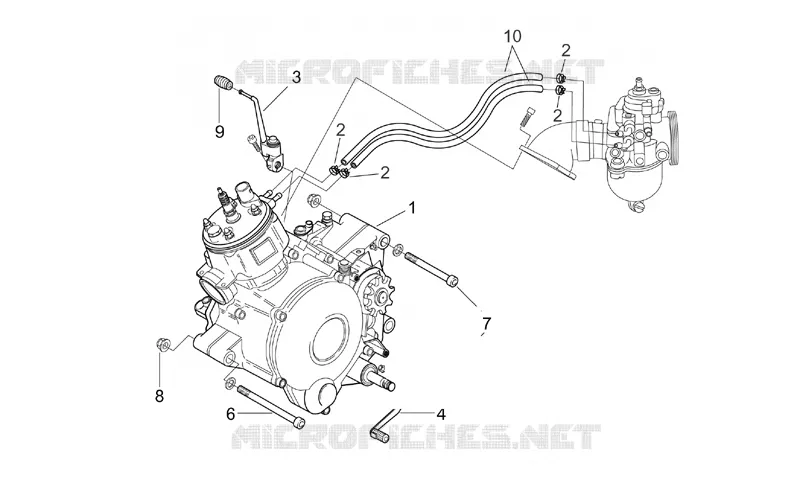

Find the detailed Engine APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
