Engine displacement
50
2
Model
MX
3
Year
2004
4
Trim
MX
5
Parts Catalog
Central body
6
Parts Diagram
Parts Catalog
Fuel tank
by
Saddle
Central body
1
2
3
4
5
6
6
6
6
7
7
7
7
8
9
10
1
RH side panel, red
AP8268225
Not Available
1
RH side panel, black
AP8268230
Not Available
2
LH side panel, red
AP8268226
Not Available
2
LH side panel, black
AP8268231
Not Available
3
Chain guard
AP8258655
£16,10 Unit Price incl. VAT
4
RH side panel extension
AP8230755
Not Available
5
Sprocket cover, grey
AP8220626
Not Available
6
Hex socket screw
AP8152108
£1,88 Unit Price incl. VAT
7
Washer 6,6x18*
AP8150179
£1,27 Unit Price incl. VAT
8
Hex socket screw
AP8150280
£5,20 Unit Price incl. VAT
9
Heat protection
AP8217038
Not Available
10
Heat protection
AP8217039
Not Available

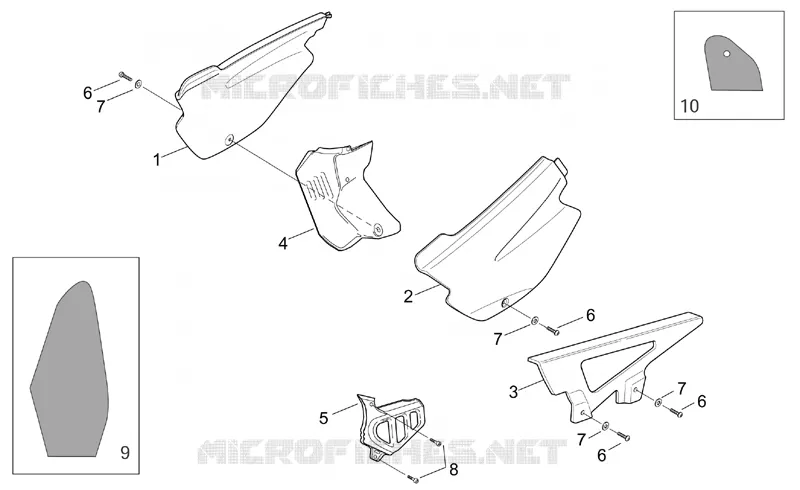

Find the detailed Central body APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
