Engine displacement
125
2
Model
MX
3
Year
2004
4
Trim
MX SuperMotard
5
Parts Catalog
Engine
6
Parts Diagram
Parts Catalog
Air box
by
Exhaust pipe
Engine
1
2
3
4
5
6
7
8
9
1
Engine 11Kw
AP8176051
Not Available
1
Engine
AP8176096
Not Available
2
Sprocket cover, grey
AP8106307
Not Available
3
Gear lever
AP8146097
£103,74 Unit Price incl. VAT
4
Lever rubber
AP8120912
£3,68 Unit Price incl. VAT
5
Hex socket screw M6x20
AP8150044
£1,27 Unit Price incl. VAT
6
Cable-guide
AP8102548
£23,58 Unit Price incl. VAT
7
Washer 6,4x12,5*
AP8150014
£1,27 Unit Price incl. VAT
8
Hex socket screw M6x25
AP8150165
£0,89 Unit Price incl. VAT
9
Hex socket screw M6x35
AP8150285
£1,94 Unit Price incl. VAT

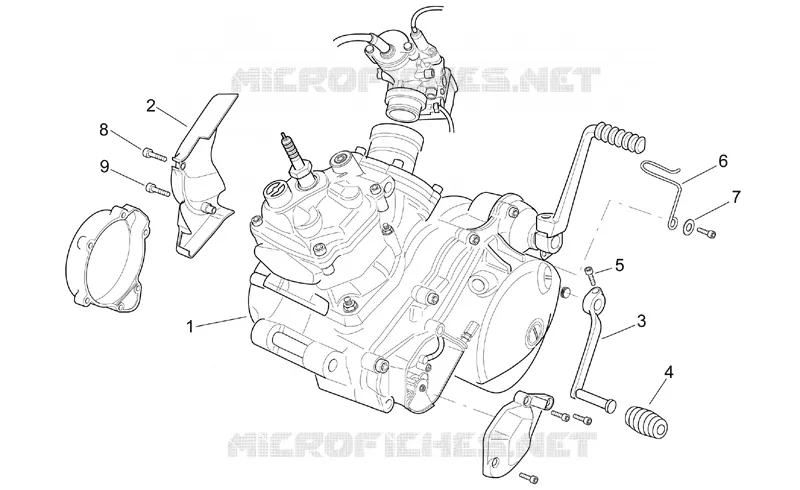

Find the detailed Engine APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
