Parts Catalog

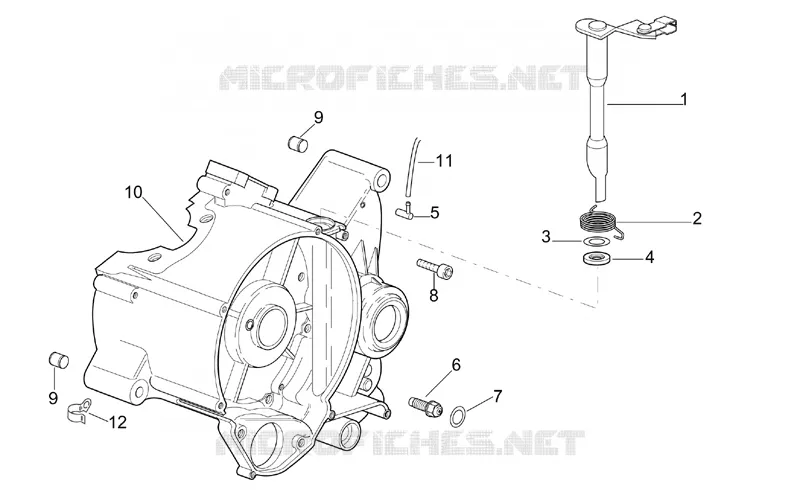

Left crankcase
6
Parts Diagram
Parts Catalog
Clutch cover
by
Right crankcase
Left crankcase
1
2
3
4
5
6
7
8
9
9
10
11
12
1
Clutch lever cpl.
AP8206257
Not Available
2
Clutch lever return spring
AP8206259
Not Available
3
Washer D14x26x0,5
AP8206875
Not Available
4
Oil seal D15x24x5
AP8509179
Not Available
5
Oil breather union
AP8206876
Not Available
6
Neutral indicator switch+seal
AP8206296
Not Available
7
Gasket 9,9x16x1
AP8206288
Not Available
8
Screw M6x40
AP8206276
Not Available
9
Crankcase pin D11,5x12
AP8206295
Not Available
10
Crankcase assy
AP8206973
Not Available
10
Crankcase assy
AP8206603
Not Available
11
Oil breather pipe D3x5 L=450
AP8206874
Not Available
12
Cable-guide
AP8206137
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
