1
Engine displacement
50
2
Model
TUONO
3
Year
2003
4
Trim
RS 50 Tuono
5
Parts Catalog

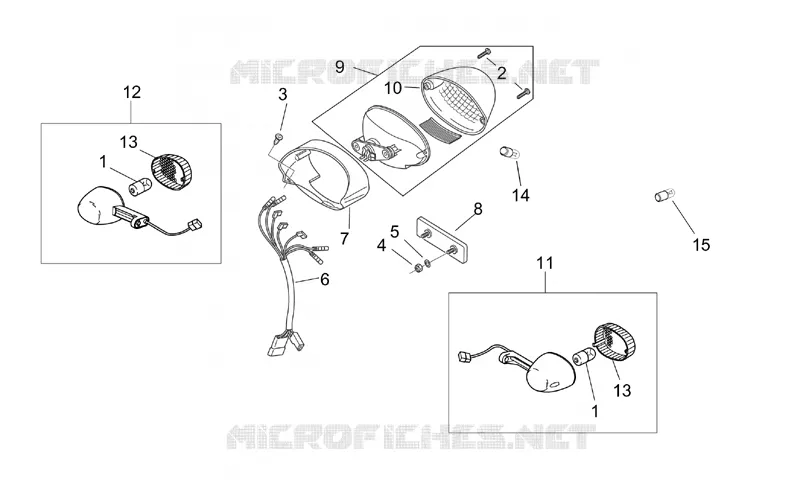

Rear lights
6
Parts Diagram
Parts Catalog
Front lights
by
Electrical system
Rear lights
1
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
1
Lamp, orange
GU93450126
Not Available
2
Screw 4,2x20*
AP8150270
£0,98 Unit Price incl. VAT
3
Screw M3,9x12,7
AP8150371
Not Available
4
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
5
Washer 4,3X9X0,8
AP8150158
£1,27 Unit Price incl. VAT
6
Taillight wiring harn.
AP8124489
Not Available
7
Rear headlight supp.
AP8134446
Not Available
8
Rear reflector
AP8112916
£12,35 Unit Price incl. VAT
9
Taillight
AP8124492
Not Available
10
Taillight lens
AP8124527
Not Available
11
RH front/LH rear turn indic.
AP8127536
Not Available
12
LH front/RH rear turn indic.
AP8127535
Not Available
13
Turn indicator lens
AP8127633
Not Available
14
Lamp P21/5W 12V
AP8224389
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
