1
Engine displacement
50
2
Model
TUONO
3
Year
2004
4
Trim
RS 50 Tuono
5
Parts Catalog
Rear master cylinder
6

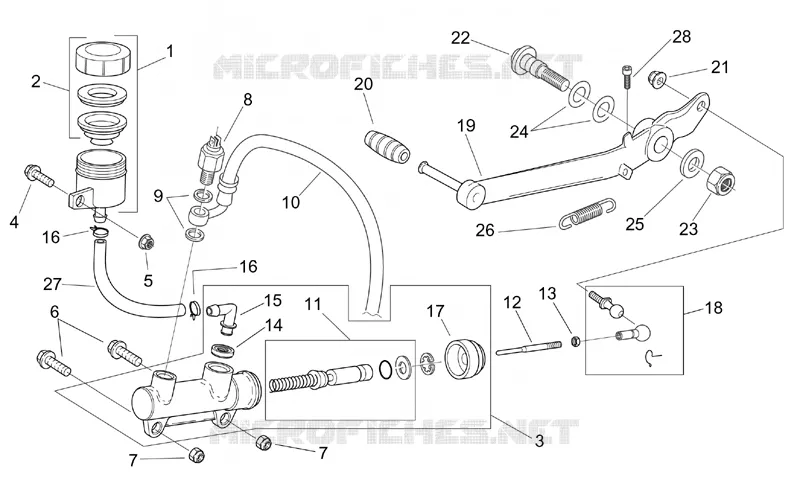

Parts Diagram
Parts Catalog
Rear wheel
by
Rear brake caliper
Rear master cylinder
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Oil tank
AP8213446
Not Available
2
Oil filler cap
AP8131320
Not Available
3
Rear master cylinder
AP8213314
Not Available
4
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
5
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
6
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
7
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
8
Stop switch
AP8124479
£36,77 Unit Price incl. VAT
9
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
10
Rear brake hose
AP8213315
Not Available
11
Rear pump rev. kit
AP8113822
Not Available
12
Pump rod
AP8113276
Not Available
13
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
14
Union gasket
AP8113821
Not Available
15
Joint
AP8113157
Not Available
16
Hose clamp D9,6
AP8102811
£2,51 Unit Price incl. VAT
17
Rear master cyl.cradle
AP8113823
Not Available
18
RH ball joint M6
AP8210007
£15,91 Unit Price incl. VAT
19
Rear brake lever
AP8235012
£51,42 Unit Price incl. VAT
20
Lever rubber
AP8120912
£3,68 Unit Price incl. VAT
21
Nut
AP8150025
£1,01 Unit Price incl. VAT
22
Brake lever pin
AP8121149
Not Available
23
Low self-locking nut
AP8150436
£1,94 Unit Price incl. VAT
24
Belleville spring
AP8121697
Not Available
25
Washer 10,5X18X2*
AP8152176
£3,65 Unit Price incl. VAT
26
Rear brake lever spring
AP8221289
Not Available
27
Rubber pipe
AP8144151
Not Available
28
Hex socket screw
AP8150280
£5,20 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
