Parts Catalog
Water pump assy
6
Parts Diagram
Parts Catalog
Crankcase
by
Crankshaft - Balance shaft
Water pump assy
1
2
3
4
4
5
6
7
8
9
10
11
12
13
1
Water pump casing
AP0222182
Not Available
2
Oil seal 10x26x7
AP0230195
£27,07 Unit Price incl. VAT
3
Water pump shaft assy.
AP0237912
Not Available
4
Pin 4x16
AP0229280
Not Available
5
Thrust washer 10,1/17/1
AP0827590
Not Available
6
Impeller
AP0222195
Not Available
7
Water pump pinion Z=16
AP0234415
Not Available
8
O-ring 26,7x1,8
AP0430060
Not Available
9
Screw w/ flange
AP0241270
Not Available
10
Idle gear Z=28/13
AP0634035
£82,52 Unit Price incl. VAT
11
Pin 6x40
AP0229380
Not Available
12
Molykote 111 100gr.
AP0897161
Not Available
13
Water pump assy
AP0293417
Not Available

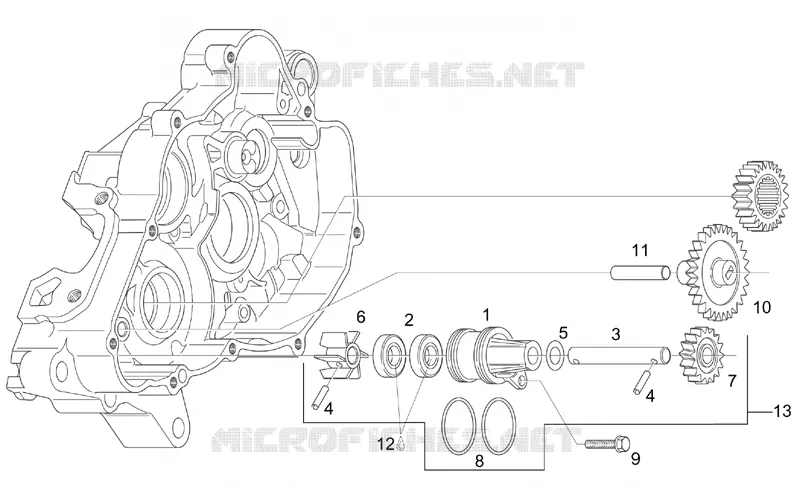

Find the detailed Water pump assy APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
