1
Engine displacement
125
2
Model
TUONO
3
Year
2003
4
Trim
RS 125 Tuono
5
Parts Catalog
Rear brake caliper
6
Parts Diagram
Parts Catalog
Rear master cylinder
by
Lights
Rear brake caliper
1
2
3
4
4
5
6
7
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
1
Rear brake disc
AP8213317
Not Available
2
Rear brake hose
AP8113714
£89,64 Unit Price incl. VAT
3
Brake hanger plate
AP8134911
£81,76 Unit Price incl. VAT
4
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
5
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
6
Rear brake caliper, gold
AP8113596
Not Available
7
Hose clamp
AP8132907
£2,68 Unit Price incl. VAT
8
Washer 5,5x15x1,6*
AP8150013
£1,61 Unit Price incl. VAT
9
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
10
Low nut M8
AP8150431
£1,94 Unit Price incl. VAT
11
Screw w/ flange M8x30
AP8152288
£2,20 Unit Price incl. VAT
12
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
13
Pads pair
AP8113651
Not Available
14
Brake caliper cover
AP8113117
Not Available
15
Bleed valve cap
AP8113005
£5,94 Unit Price incl. VAT
16
Air bleed valve
AP8113006
£28,27 Unit Price incl. VAT
17
Brake caliper rev. kit
AP8113198
Not Available
18
Pin+Brake spring
AP8113818
Not Available
19
screw
AP8213418
Not Available

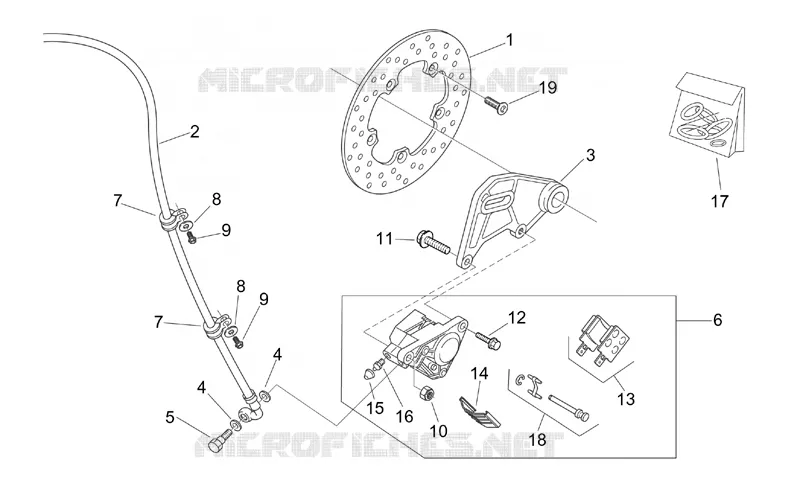

Find the detailed Rear brake caliper APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
