1
Engine displacement
125
2
Model
TUONO
3
Year
2003
4
Trim
RS 125 Tuono
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Front wheel
by
Rear master cylinder
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
19
20
21
1
Rear wheel spindle
AP8125631
Not Available
2
RH wheel ou.spacer
AP8125638
Not Available
3
LH wheel ou.spacer
AP8125639
Not Available
4
Chain cpl conn.link
AP8107110
Not Available
5
LH chain guide plate, br.
AP8120806
£10,79 Unit Price incl. VAT
6
RH chain guide plate, br.
AP8120807
£10,79 Unit Price incl. VAT
7
Rear wheel spindle nut
AP8125763
£16,00 Unit Price incl. VAT
8
Tubeless tyre valve
AP8201546
£5,35 Unit Price incl. VAT
9
Tyre
0000000
Not Available
10
Rear wheel ins.spacer
AP8125645
£36,94 Unit Price incl. VAT
11
Rear wheel bear.
AP8125646
Not Available
12
Rear wheel oil seal
AP8125647
Not Available
13
Rear wheel, white
AP8128026
Not Available
13
Rear wheel, red
AP8128146
Not Available
13
Rear wheel, gold
AP8128001
Not Available
14
Chain ring
AP8107134
Not Available
15
Flexible coupling rubber
AP8120792
£115,10 Unit Price incl. VAT
16
Crown holder
AP8125628
Not Available
17
Snap ring
AP8102296
£10,93 Unit Price incl. VAT
18
Hex screw M8x25
AP8125635
Not Available
19
Circlip chain ring
AP8125637
Not Available
20
Self-locking nut M8
AP8125636
Not Available
21
Connecting link
AP8107135
Not Available

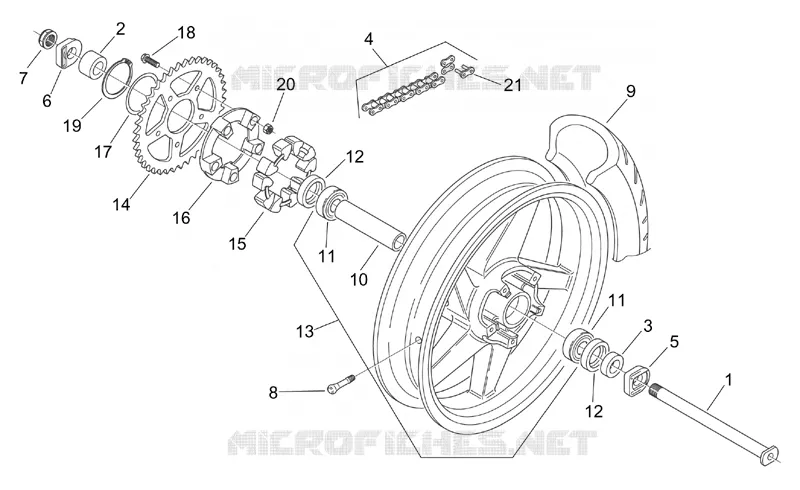

Find the detailed Rear wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
