1
Engine displacement
125
2
Model
TUONO
3
Year
2003
4
Trim
RS 125 Tuono
5
Parts Catalog
RH controls
6
Parts Diagram
Parts Catalog
Handlebar
by
LH Controls
RH controls
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Anti.v weight, black
AP8202330
Not Available
2
Hex socket screw M6x60
AP8150157
£1,27 Unit Price incl. VAT
3
Handgrip - pair
AP8118287
£17,27 Unit Price incl. VAT
4
RH lights sel. w/wiring
AP8124914
Not Available
5
Front brake lever
AP8118460
£81,48 Unit Price incl. VAT
6
Throttle cable w/ splitter
AP8114462
Not Available
7
Throttle+hand grip
AP8118307
£18,86 Unit Price incl. VAT
8
Brake oil tank complete
AP8113280
Not Available
9
Oil brake tank supp.
AP8134965
£15,44 Unit Price incl. VAT
10
U-bolt
AP8105153
Not Available
11
Throttle cable adjuster
AP8114272
Not Available
12
Throttle cable adjuster
AP8114332
£3,68 Unit Price incl. VAT
13
Hose clamp D9,6
AP8102811
£2,51 Unit Price incl. VAT
14
Rubber pipe
AP8144151
Not Available
15
Spacer
AP8120278
£1,27 Unit Price incl. VAT
16
Rubber spacer
AP8120405
£5,52 Unit Price incl. VAT
17
Front master cilinder
AP8133625
Not Available
18
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
19
Nut
AP8218345
Not Available
20
Brake lever pin
AP8113413
£19,42 Unit Price incl. VAT
21
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
22
Joint
AP8113157
Not Available
23
Brake fluid reservoir cap
AP8113816
Not Available
24
Union gasket
AP8113821
Not Available
25
Front master cyl.cradle
AP8113824
Not Available
26
Front pump rev. kit
AP8113825
Not Available
27
U-bolt screw
AP8118518
Not Available
28
Lights selector cable
AP8127534
Not Available

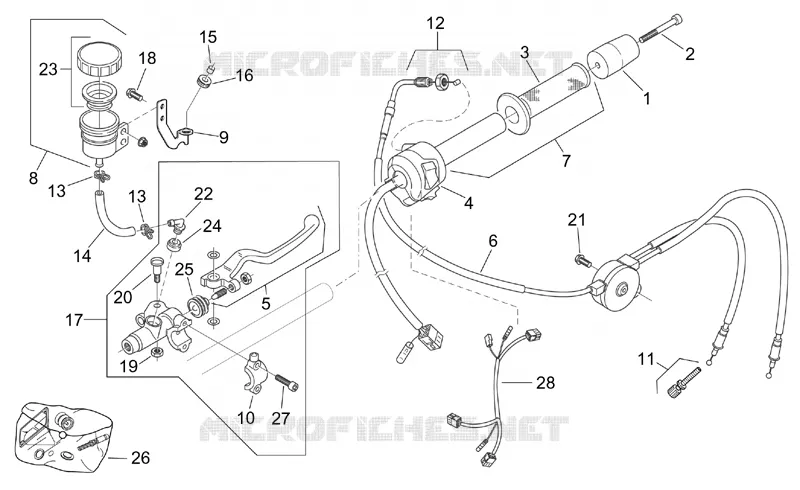

Find the detailed RH controls APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
