Engine displacement
125
2
Model
TUONO
3
Year
2003
4
Trim
RS 125 Tuono
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Clutch cover
by
Ignition unit
Oil pump
1
2
3
4
5
6
7
8
9
10
11
12
1
Oil pump assy.
AP0294735
Not Available
2
Hose clamp
AP0256400
Not Available
3
pipe 350 MM
AP0256410
Not Available
4
Hose clamp 8
AP0251080
£10,60 Unit Price incl. VAT
5
pipe 850 MM
AP0256037
Not Available
6
Rubber, wire cover
AP0260030
Not Available
7
O-ring 3771
AP0250890
Not Available
8
Hex socket screw
AP0840510
£3,90 Unit Price incl. VAT
9
Hose clamp 35553
AP0853840
Not Available
10
Oil pump cover
AP0211440
Not Available
11
Hex socket screw
AP0840511
Not Available
12
Loctite (violet) 221 10cc.
AP0899785
Not Available

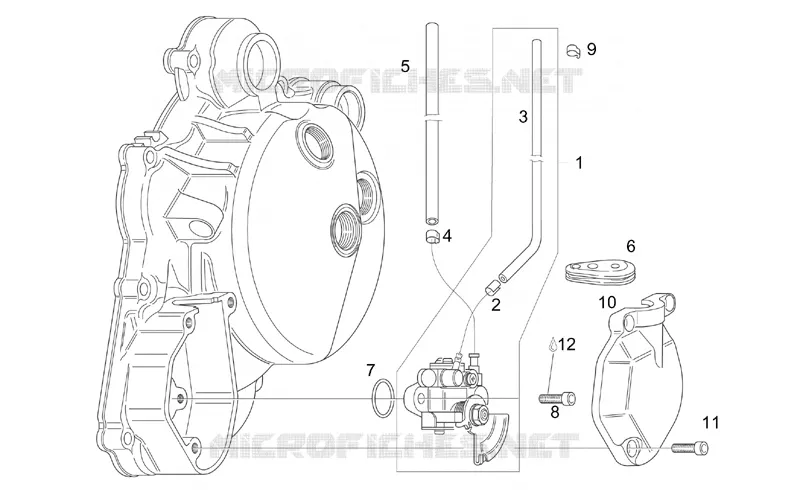

Find the detailed Oil pump APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
