Engine displacement
125
2
Model
TUONO
3
Year
2003
4
Trim
RS 125 Tuono
5
Parts Catalog
Carburettor flange
6
Parts Diagram
Parts Catalog
Cylinder - Head - Piston
by
Cylinder - Exhaust valve
Carburettor flange
1
2
3
3
4
4
5
5
6
7
8
9
9
10
10
1
Gasket
AP0250521
Not Available
2
Reed valve assy
AP0224387
Not Available
3
Reed valve assy
AP0224430
Not Available
4
Break washer A4
AP0945758
£1,88 Unit Price incl. VAT
5
Round screw M4x8
AP0940235
Not Available
6
Carburettor flange 28 MM
AP0267918
£164,83 Unit Price incl. VAT
7
Hex socket screw M6x25
AP0840861
Not Available
8
Hose clamp 51
AP0251850
Not Available
9
Loctite (green) 648 5gr.
AP0899788
Not Available
10
screw M6x25
AP0440113
£12,08 Unit Price incl. VAT

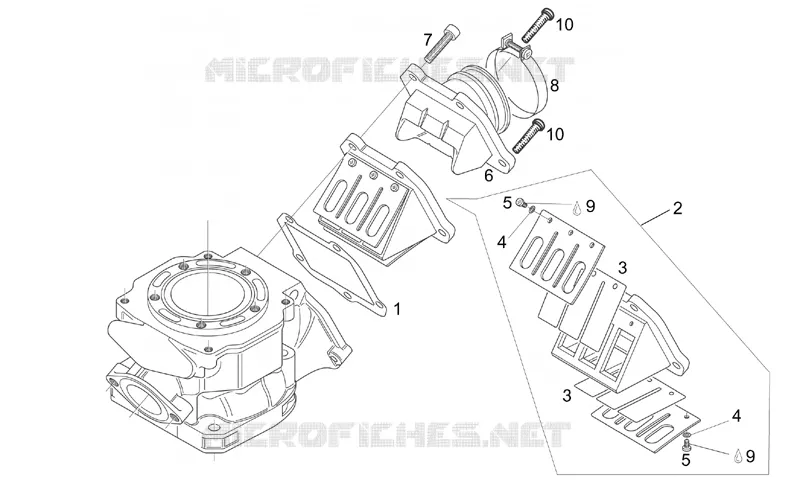

Find the detailed Carburettor flange APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
