Engine displacement
125
2
Model
TUONO
3
Year
2003
4
Trim
RS 125 Tuono
5
Parts Catalog
Cylinder - Head - Piston
6
Parts Diagram
Parts Catalog
Crankshaft - Balance shaft
by
Carburettor flange
Cylinder - Head - Piston
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
1
Gasket 0,5
AP0650096
Not Available
1
Gasket 0,3
AP0650095
Not Available
1
Gasket 0,8
AP0650097
Not Available
2
Cylinder 9 holes
AP0223618
Not Available
3
O-ring 64x2
AP0250160
£10,72 Unit Price incl. VAT
4
Cylinder head
AP0223384
Not Available
5
Break washer A8
AP0945752
Not Available
6
Round screw M8x30
AP0940487
Not Available
7
O-ring 23,3x2,4
AP0430782
£5,32 Unit Price incl. VAT
8
Cylinder head cover
AP0613100
Not Available
9
Thermostat 70°
AP0222122
Not Available
10
Thermostat holder
AP0222175
£18,05 Unit Price incl. VAT
11
Spring
AP0239950
Not Available
12
Thermostat bow
AP0222202
Not Available
13
Special cap screw M4x8
AP0240195
Not Available
14
O-ring 105x2,5
AP0250280
£4,76 Unit Price incl. VAT
15
Hex socket screw M6x20
AP0241930
Not Available
16
Piston assy 54,00 mm
AP0294755
Not Available
16
Piston assy 53,99 mm
AP0294748
Not Available
16
Piston assy 53,98 mm
AP0294747
Not Available
17
Ring d54
AP0215670
Not Available
18
Piston pin
AP0216139
Not Available
19
Stop ring D15
AP0945635
Not Available

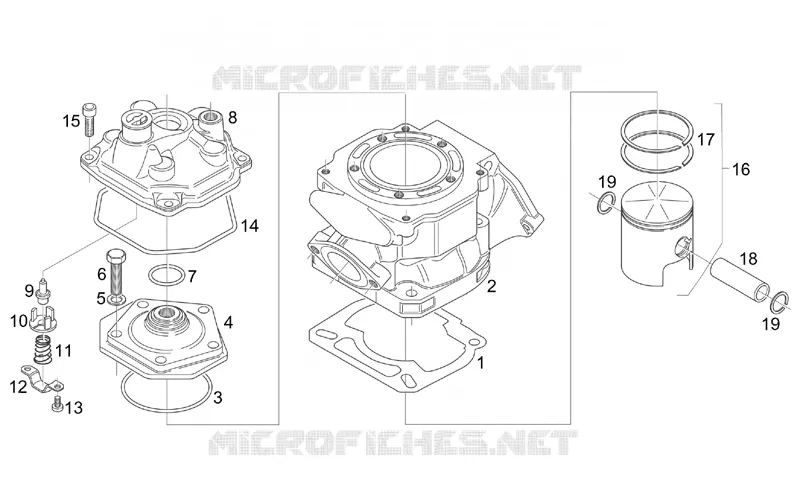

Find the detailed Cylinder - Head - Piston APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
