1
Engine displacement
125
2
Model
TUONO
3
Year
2003
4
Trim
RS 125 Tuono
5
Parts Catalog
Saddle unit
6
Parts Diagram
Parts Catalog
Fuel tank
by
Rear body I
Saddle unit
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
1
Driver saddle, black
AP8129405
Not Available
1
Driver saddle, red/black
AP8129436
Not Available
1
Driver saddle, red/black
AP8129391
Not Available
2
Rear saddle, black
AP8229389
Not Available
2
Rear saddle, black
AP8129406
Not Available
2
Rear saddle, red
AP8129392
Not Available
3
Pillion seat strap, black
AP8229390
Not Available
3
Pillion seat strap, red
AP8129393
Not Available
3
Pillion seat strap, black
AP8129407
Not Available
4
Seat cushion
AP8129223
£101,00 Unit Price incl. VAT
5
Glove comp.door, black
AP8168287
Not Available
6
Rubber spacer
AP8220349
£3,10 Unit Price incl. VAT
7
Saddle lock
AP8104709
Not Available
8
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
9
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
10
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
11
Self-locking nut M5
AP8152306
Not Available
12
Lock cable
AP8114389
£16,52 Unit Price incl. VAT
13
Pass.saddle connecting plate
AP8102913
£30,04 Unit Price incl. VAT
14
Helmet lock cable
AP8102502
£13,54 Unit Price incl. VAT

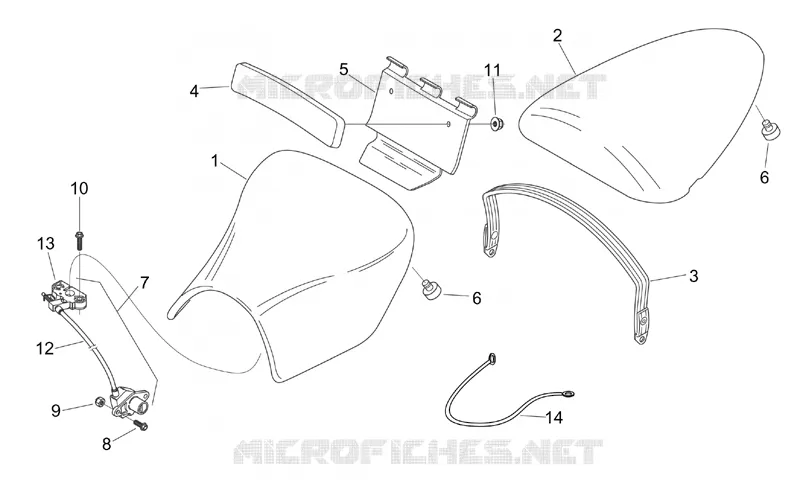

Find the detailed Saddle unit APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
