Engine displacement
125
2
Model
TUONO
3
Year
2003
4
Trim
RS 125 Tuono
5
Parts Catalog
Engine
6
Parts Diagram
Parts Catalog
Carburettor III
by
Crankcase
Engine
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
16
17
18
19
19
20
21
22
23
24
25
25
26
1
Engine 122 22KW
AP8176079
Not Available
1
Engine 122 11KW
AP8176080
Not Available
2
Sprocket cover, grey
AP8106315
Not Available
3
Cable-guide
AP8120708
Not Available
4
Gear lever
AP8106013
£55,12 Unit Price incl. VAT
5
RH ball joint M6
AP8210007
£15,91 Unit Price incl. VAT
6
Left ball joint M6
AP8110053
£16,18 Unit Price incl. VAT
7
Gearbox linkage rod
AP8121163
Not Available
8
Rubber spacer
AP8220205
Not Available
9
Brake lever pin
AP8121284
£18,60 Unit Price incl. VAT
10
Gearbox connecting rod
AP8135726
Not Available
11
Front RH eng. plate
AP8146775
Not Available
12
Front LH eng. plate
AP8146776
Not Available
13
RH engine support
AP8135786
Not Available
14
LH engine support
AP8135787
£31,39 Unit Price incl. VAT
15
Screw
AP8150412
£13,28 Unit Price incl. VAT
16
Low self-locking nut
AP8150436
£1,94 Unit Price incl. VAT
17
Hex socket screw M10x120
AP8150310
£5,96 Unit Price incl. VAT
18
Hex socket screw M6x20
AP8150044
£1,27 Unit Price incl. VAT
19
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
20
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
21
Spacer *
AP8121147
Not Available
22
Nut
AP8152138
£1,88 Unit Price incl. VAT
23
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
24
Belleville spring
AP8121697
Not Available
25
Silent-block *
AP8120275
£2,83 Unit Price incl. VAT
26
Rubber spacer
AP8120405
£5,52 Unit Price incl. VAT

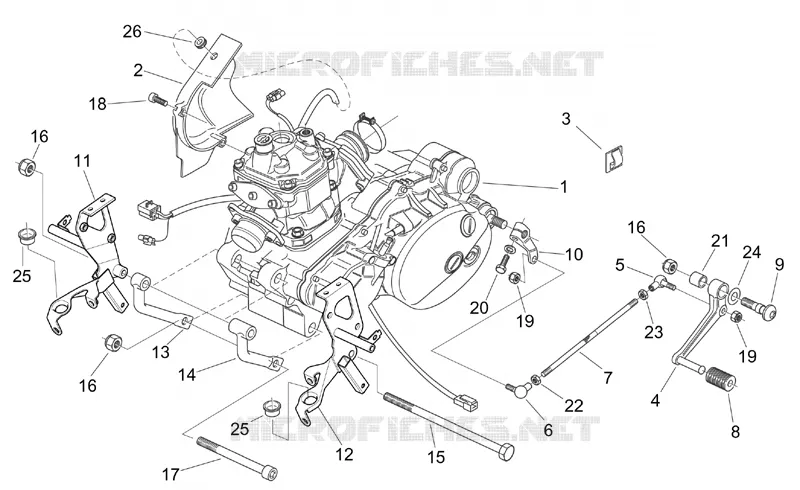

Find the detailed Engine APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
