Parts Catalog
Fuel tank
6

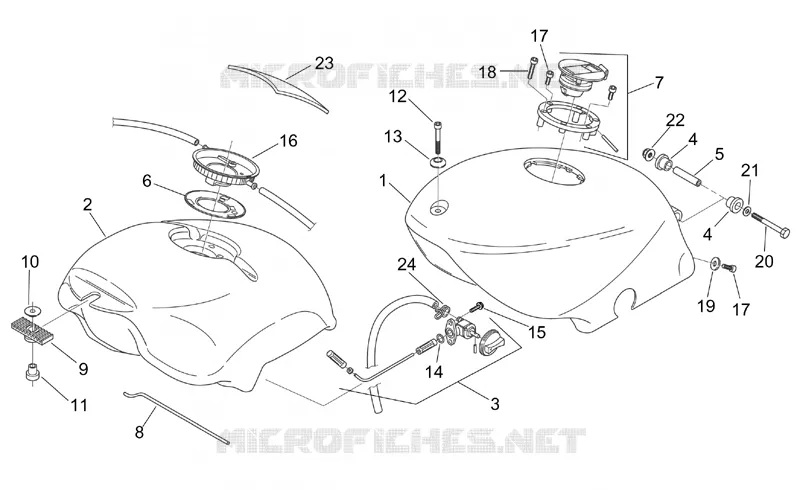

Parts Diagram
Parts Catalog
Front body II
by
Saddle unit
Fuel tank
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
1
Fuel tank cover, black
AP8168835
Not Available
1
Fuel tank cover, red
AP8178007
Not Available
1
Fuel tank cover, silver
AP8178626
Not Available
2
Fuel tank
AP8139124
Not Available
3
Fuel cock
AP8102819
£51,97 Unit Price incl. VAT
4
Rubber spacer *
AP8120709
£2,46 Unit Price incl. VAT
5
Rear spacer
AP8152153
Not Available
6
Fuel tank gasket
AP8144159
Not Available
7
Fuel filler cap
AP8104710
Not Available
8
Fuel tank fastener rod
AP8121324
£43,55 Unit Price incl. VAT
9
Tank rubber
AP8120557
£17,03 Unit Price incl. VAT
10
T bush *
AP8121114
£4,49 Unit Price incl. VAT
11
Rear brake lever bush
AP8221106
Not Available
12
Hex socket screw M6x50
AP8150202
£2,17 Unit Price incl. VAT
13
Washer 6,5x12,5*
AP8121819
£2,65 Unit Price incl. VAT
14
O-ring
AP8120798
Not Available
15
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
16
Float chamber
AP8102676
£62,15 Unit Price incl. VAT
17
Hex socket screw M5x16
AP8150050
£1,88 Unit Price incl. VAT
18
Hex socket screw
AP8150176
£0,85 Unit Price incl. VAT
19
Washer 5,5x15x1,6
AP8150248
£0,98 Unit Price incl. VAT
20
Screw
AP8150314
Not Available
21
Washer 6,4x12,5*
AP8150014
£1,27 Unit Price incl. VAT
22
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
23
Adhesive sponge
AP8117073
£45,78 Unit Price incl. VAT
24
Hose clamp D 11,9
AP8201358
£0,60 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
