1
Engine displacement
125
2
Model
TUONO
3
Year
2003
4
Trim
RS 125 Tuono
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Exhaust unit
by
Rear wheel
Front wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
1
Front brake disc D320
AP8113567
Not Available
2
Front brake caliper, gold
AP8113530
Not Available
3
Front brake hose
AP8133628
Not Available
4
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
5
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
6
Tubeless tyre valve
AP8201546
£5,35 Unit Price incl. VAT
7
Odometer gear
AP8104387
Not Available
8
Front wheel spindle
AP8125890
Not Available
9
Front RH whe.ou.spacer
AP8121157
£26,32 Unit Price incl. VAT
10
Wheel spindle screw
AP8125418
£30,11 Unit Price incl. VAT
11
Tyre
0000000
Not Available
12
Washer 15x28x2,5*
AP8150208
£1,27 Unit Price incl. VAT
13
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
14
Brake caliper cover
AP8113310
Not Available
15
Air bleed valve
AP8113006
£28,27 Unit Price incl. VAT
16
Bleed valve cap
AP8113005
£5,94 Unit Price incl. VAT
17
Front pads pair I/D452
AP8113489
Not Available
18
Front wheel bear.
AP8125644
Not Available
19
Spacer
AP8125469
Not Available
20
Front brake caliper rev. kit
AP8113309
Not Available
21
Screw w/ flange
AP8152289
£1,27 Unit Price incl. VAT
22
Washer 8,5x15x0,8
AP8150376
£1,76 Unit Price incl. VAT
23
Front wheel, gold
AP8108997
Not Available
23
Front wheel, red
AP8128081
Not Available
23
Front wheel, white
AP8128023
Not Available
24
Pin+Brake spring
AP8113819
Not Available
25
Gasket ring
AP8144560
£34,98 Unit Price incl. VAT
26
Drive key
AP8144561
Not Available

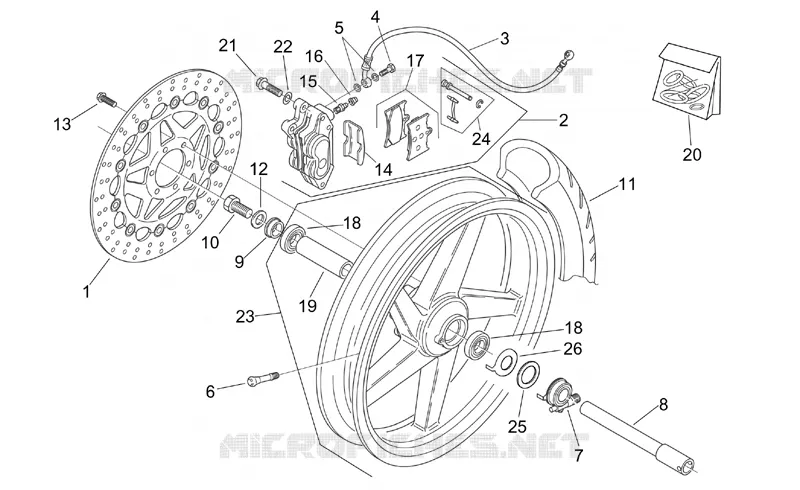

Find the detailed Front wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
