1
Engine displacement
125
2
Model
TUONO
3
Year
2003
4
Trim
RS 125 Tuono
5
Parts Catalog
Front fork
6
Parts Diagram
Parts Catalog
Rear footrests
by
Swing arm
Front fork
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
17
18
19
20
21
22
23
24
1
Front fork
AP8163116
Not Available
2
Hex socket screw M6x30
AP8123574
Not Available
3
Plug
AP8150352
Not Available
4
Fork lower ring nut
AP8203588
£29,14 Unit Price incl. VAT
5
Gasket ring
AP8101106
Not Available
6
Steering washer
AP8203550
£1,27 Unit Price incl. VAT
7
Ball bearing
AP8110025
£32,76 Unit Price incl. VAT
8
Roller bearing
AP8110024
£62,09 Unit Price incl. VAT
9
Lower dust cover ring
AP8101271
£1,28 Unit Price incl. VAT
10
Stem base
AP8123879
£161,52 Unit Price incl. VAT
11
Screw M8x30
AP8203570
Not Available
12
Sleeve plug
AP8123878
Not Available
13
O-ring
AP8123346
£3,84 Unit Price incl. VAT
14
Half ring
AP8123441
Not Available
15
Ring spring
AP8123357
£25,10 Unit Price incl. VAT
16
Spacer
AP8123355
Not Available
17
Bush
AP8123689
Not Available
18
Cup
AP8123360
Not Available
19
Gasket ring
AP8103235
Not Available
20
Stop ring
AP8123199
Not Available
21
Dust cover + spring
AP8123777
Not Available
22
Sleeve, black
AP8123691
£167,29 Unit Price incl. VAT
23
Hub+RH fork leg
AP8163190
Not Available
24
Hub+LH fork leg
AP8163191
Not Available

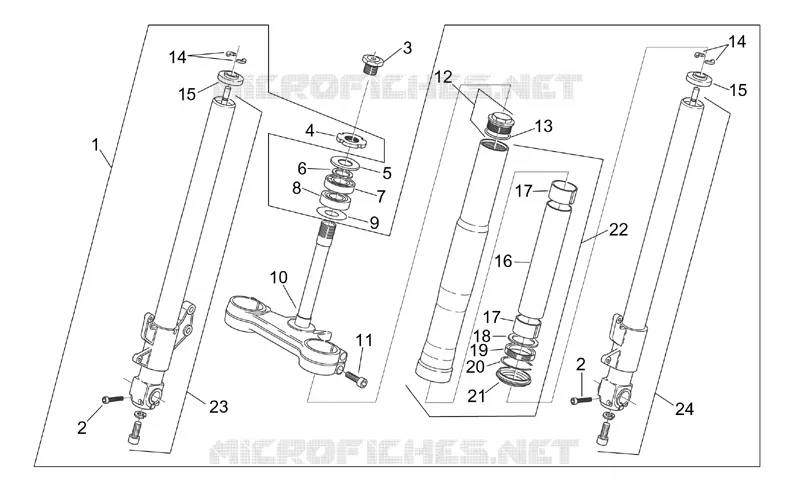

Find the detailed Front fork APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
