1
Engine displacement
125
2
Model
TUONO
3
Year
2003
4
Trim
RS 125 Tuono
5
Parts Catalog
Front footrests
6
Parts Diagram
Parts Catalog
Central stand
by
Rear footrests
Front footrests
1
2
3
4
5
5
6
7
7
8
9
10
10
11
12
13
14
14
15
16
17
18
19
20
20
20
21
22
23
23
1
RH front footrest guard
AP8134542
Not Available
2
LH front footrest guard
AP8134543
£23,86 Unit Price incl. VAT
3
LH front footrest bracket
AP8146374
£107,28 Unit Price incl. VAT
4
RH front footrest bracket
AP8146373
£107,28 Unit Price incl. VAT
5
Front footrest, pair
AP8135313
Not Available
6
Upper RH fair.supp. plate
AP8134243
Not Available
7
Footrest pin
AP8121134
£3,25 Unit Price incl. VAT
8
RH front footrest spring
AP8121939
£15,59 Unit Price incl. VAT
9
LH front footrest spring
AP8121940
£15,59 Unit Price incl. VAT
10
Stop ring
AP8152409
£1,38 Unit Price incl. VAT
11
Chain tensioner roller
AP8120569
£26,51 Unit Price incl. VAT
12
Spacer *
AP8121672
£3,11 Unit Price incl. VAT
13
Spacer *
AP8120568
£2,18 Unit Price incl. VAT
14
Footrest pin
AP8121566
£11,32 Unit Price incl. VAT
15
Screw w/ flange M6x35
AP8152282
£1,27 Unit Price incl. VAT
16
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
17
Washer 6,4x12,5*
AP8150014
£1,27 Unit Price incl. VAT
18
T bush
AP8121728
£1,88 Unit Price incl. VAT
19
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
20
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
21
Hex socket screw M8x70
AP8150221
£1,80 Unit Price incl. VAT
22
Washer 8,4x32x2,5
AP8150019
£0,85 Unit Price incl. VAT
23
Hex socket screw M8x30
AP8150107
£1,94 Unit Price incl. VAT

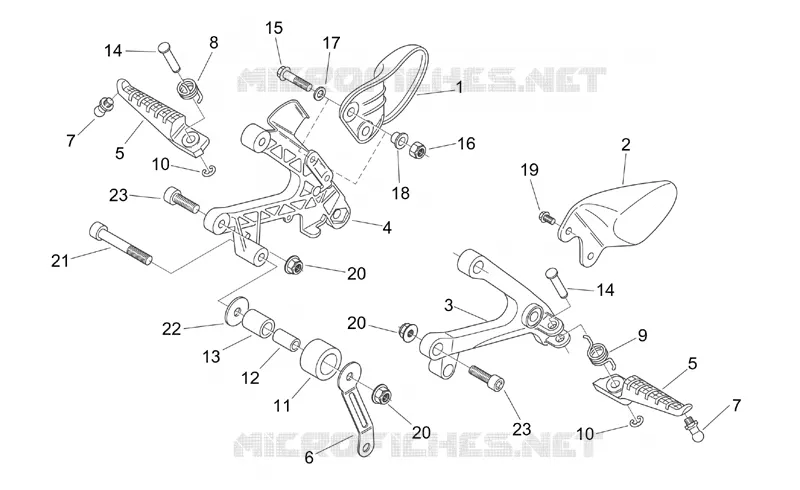

Find the detailed Front footrests APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
