Engine displacement
125
2
Model
TUONO
3
Year
2003
4
Trim
RS 125 Tuono
5
Parts Catalog
Rear shock absorber
6
Parts Diagram
Parts Catalog
Swing arm
by
Front body I
Rear shock absorber
1
2
3
4
5
5
5
6
6
6
7
8
9
10
11
12
12
12
12
13
13
13
13
13
14
15
16
17
18
19
20
21
22
1
Shock absorber
AP8123853
Not Available
2
Single conrod
AP8132634
Not Available
3
Double conrod
AP8135362
Not Available
4
Hex socket screw M10x80
AP8150192
Not Available
5
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
6
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
7
Screw M8x40
AP8152111
£1,00 Unit Price incl. VAT
8
Low nut M8
AP8150431
£1,94 Unit Price incl. VAT
9
Hex socket screw M10x120
AP8150310
£5,96 Unit Price incl. VAT
10
Screw M10x75
AP8150336
£3,90 Unit Price incl. VAT
11
Hex socket screw M12x78.5
AP8150346
£21,94 Unit Price incl. VAT
12
Gasket ring
AP8120485
£3,11 Unit Price incl. VAT
13
Oil seal D18x24x3
AP8110068
£16,14 Unit Price incl. VAT
14
Belleville spring
AP8121697
Not Available
15
Low self-locking nut M12*
AP8150432
£2,18 Unit Price incl. VAT
16
Roller cage
AP8110064
£26,68 Unit Price incl. VAT
17
Roller cage
AP8110063
£17,06 Unit Price incl. VAT
18
Double connecting rod pin
AP8121846
Not Available
19
Piston pin L=50
AP8121845
£20,87 Unit Price incl. VAT
20
Double connecting rod pin
AP8121847
Not Available
21
T bush
AP8121151
£2,33 Unit Price incl. VAT
22
T bush *
AP8121155
£3,85 Unit Price incl. VAT

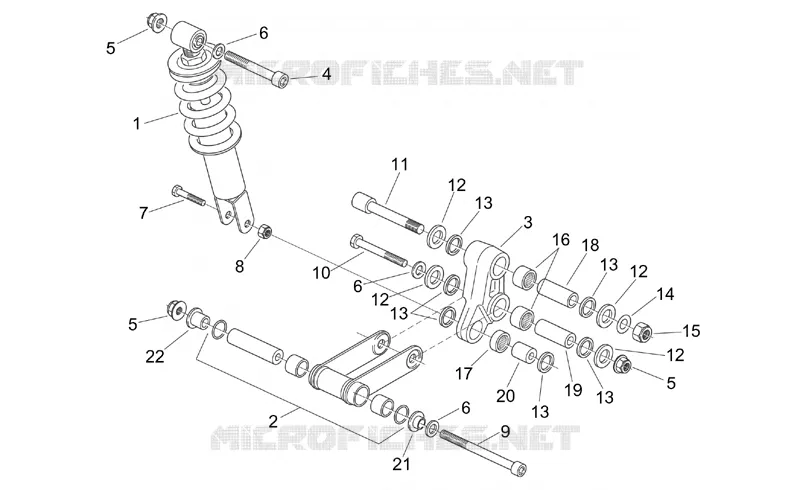

Find the detailed Rear shock absorber APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
