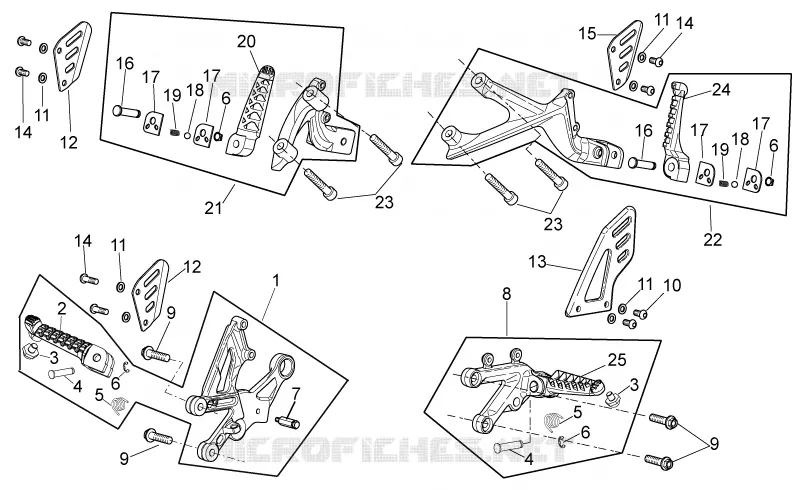

Foot rests
1
2
3
3
4
4
5
5
6
6
6
6
7
8
9
9
9
10
11
11
11
11
12
12
13
14
14
14
15
16
16
17
17
17
17
18
18
19
19
20
21
22
23
23
24
25
1
RH front footrest bracket
897828
£319,99 Unit Price incl. VAT
2
RH Foot rests
897830
Not Available
3
Pin
GU30441005
Not Available
4
Footrest pin
CM228401
£3,17 Unit Price incl. VAT
5
Footrest return spring
AP8121224
£4,21 Unit Price incl. VAT
6
Stop ring
AP8120573
£0,73 Unit Price incl. VAT
7
Springs fixing pin
GU05677730
£21,06 Unit Price incl. VAT
8
LH front footrest bracket
897829
£169,84 Unit Price incl. VAT
9
Screw
AP8150540
£10,54 Unit Price incl. VAT
10
Hex socket screw M6x20
AP8224470
£1,27 Unit Price incl. VAT
11
Spring washer 6,4x11x0,5*
AP8150429
Not Available
12
RH protection
858787
£65,86 Unit Price incl. VAT
13
LH protection
858788
£65,86 Unit Price incl. VAT
14
Hex socket screw M6x12
AP8150537
£1,27 Unit Price incl. VAT
15
LH rear footrest guard
894201
£44,93 Unit Price incl. VAT
16
Footrest pin
CM228402
£3,34 Unit Price incl. VAT
17
Footrest plate
AP8134451
£5,77 Unit Price incl. VAT
18
Ball D6,35
AP8101861
£0,36 Unit Price incl. VAT
19
Coil compress. spring
AP8121133
£3,22 Unit Price incl. VAT
20
Rear footrest, RH
897832
£99,66 Unit Price incl. VAT
21
Rear footrest, RH cpl
897834
£179,65 Unit Price incl. VAT
22
Rear footrest, LH
897835
£179,65 Unit Price incl. VAT
23
Hex socket screw M8x45
AP8150164
£1,88 Unit Price incl. VAT
24
Rear footrest, LH
897833
£96,07 Unit Price incl. VAT
25
LH Foot rests
897831
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
