Exhaust pipe I FOR Tuono V4 Factory FROM 2015

Free shipping for all orders to United Kingdom over £150! See conditions.

Exhaust pipe I

1

Front. Exhaust pipe

858738

Not Available

2

Nut

436947

£1,14 Unit Price incl. VAT

3

Exhaust pipe gasket

852090

Not Available

4

Spring

AP8121170

£18,19 Unit Price incl. VAT

5

Central exhaust manifold

899987

Not Available

6

Lamda sensor l. 325 mm

584344

£178,32 Unit Price incl. VAT

7

Gasket

GU05128230

£41,65 Unit Price incl. VAT

8

Hose clamp D 57 mm

2B003044

£17,87 Unit Price incl. VAT

8

LH manifold pipe D 63 mm

851586

£44,94 Unit Price incl. VAT

9

RH rear exhaust pipe

858739

Not Available

10

LH rear exhaust pipe

858740

Not Available

11

Silenziatore di scarico

2B002264

Not Available

11

Silencer

2B003035

Not Available

12

Exhaust pipe heat prot.

898383

£164,88 Unit Price incl. VAT

13

Torx Screw M6x10

898385

£7,85 Unit Price incl. VAT

14

Spring plate M6

254485

£1,64 Unit Price incl. VAT

15

Washer 8,5x15x0,8

AP8150376

£1,76 Unit Price incl. VAT

16

Hex socket screw M8x35

AP8150236

£1,27 Unit Price incl. VAT

17

Bush

AP8121199

£10,54 Unit Price incl. VAT

18

Rubber spacer

AP8144558

£4,92 Unit Price incl. VAT

19

Spacer bush

AP8121455

£4,31 Unit Price incl. VAT

20

Washer

AP8150018

£1,88 Unit Price incl. VAT

21

Low nut M8

AP8150431

£1,94 Unit Price incl. VAT

22

Fixing bracket

2B001525

£46,28 Unit Price incl. VAT

22

Bracket

899332

£46,28 Unit Price incl. VAT

23

Screw w/ flange M6x16

AP8152278

£1,91 Unit Price incl. VAT

24

Silent-block

894228

£18,80 Unit Price incl. VAT

25

Washer

AP8150018

£1,88 Unit Price incl. VAT

26

Hex socket screw

AP8152112

£1,58 Unit Price incl. VAT

27

Exhaust valve actuator

2D000064

Not Available

28

Heat protection

890928

£12,92 Unit Price incl. VAT

29

Screw w/ flange M6x30

AP8152281

£1,80 Unit Price incl. VAT

30

Air box spacer

AP8134640

£4,93 Unit Price incl. VAT

31

T bush *

AP8121725

£1,88 Unit Price incl. VAT

32

Rubber spacer *

AP8120223

£2,74 Unit Price incl. VAT

33

Spacer

840509

£5,14 Unit Price incl. VAT

34

Gas trasmission return

B045008

£30,74 Unit Price incl. VAT

35

Gas trasmission delivery

B045009

£28,79 Unit Price incl. VAT

36

Hose clamp

845978

£8,57 Unit Price incl. VAT

37

exhaust valve actuator cover

899524

£10,01 Unit Price incl. VAT

38

Spacer

AP8120253

£1,66 Unit Price incl. VAT

39

Screw w/ flange M6x35

AP8152282

£1,27 Unit Price incl. VAT

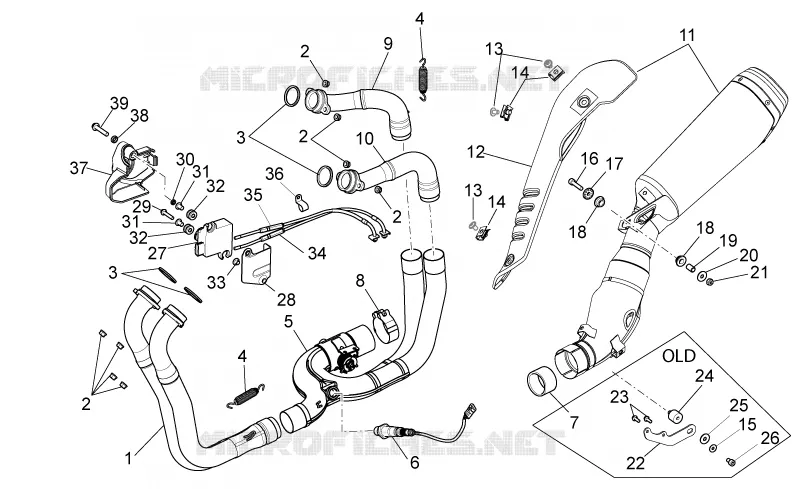

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
