Exhaust pipe I FOR Tuono V4 R STD/APRC FROM 2011

Free shipping for all orders to United Kingdom over £150! See conditions.

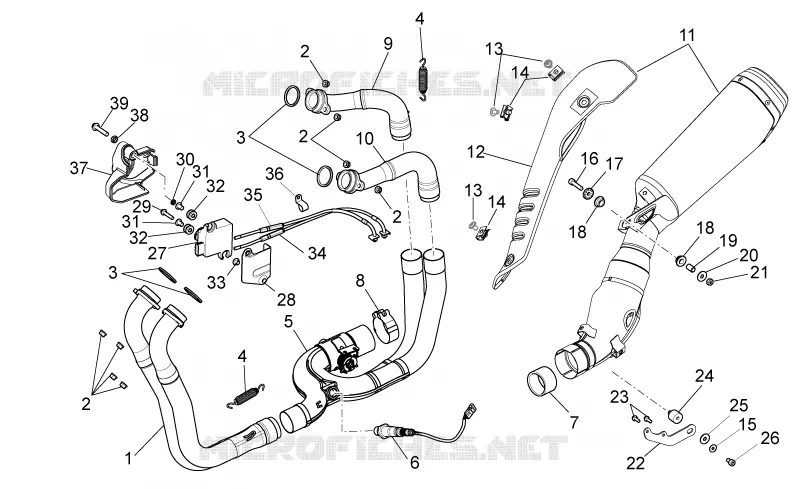

Exhaust pipe I

1

Front. Exhaust pipe

858738

Not Available

2

Nut

436947

£1,14 Unit Price incl. VAT

3

Exhaust pipe gasket

852090

Not Available

4

Spring

AP8121170

£18,19 Unit Price incl. VAT

5

Central exhaust manifold

8587414

Not Available

6

Lamda sensor l. 325 mm

584344

£178,32 Unit Price incl. VAT

7

Gasket

GU05128230

£41,65 Unit Price incl. VAT

8

LH manifold pipe D 63 mm

851586

£44,94 Unit Price incl. VAT

9

RH rear exhaust pipe

858739

Not Available

10

LH rear exhaust pipe

858740

Not Available

11

Silencer

B043283

Not Available

11

Silencer

897113

Not Available

12

Exhaust pipe heat prot.

898383

£164,88 Unit Price incl. VAT

13

Torx Screw M6x10

898385

£7,85 Unit Price incl. VAT

14

Spring plate M6

254485

£1,64 Unit Price incl. VAT

15

Washer 8,5x15x0,8

AP8150376

£1,76 Unit Price incl. VAT

16

Hex socket screw M8x35

AP8150236

£1,27 Unit Price incl. VAT

17

Bush

AP8121199

£10,54 Unit Price incl. VAT

18

Rubber spacer

AP8144558

£4,92 Unit Price incl. VAT

19

Spacer bush

AP8121455

£4,31 Unit Price incl. VAT

20

Washer

AP8150018

£1,88 Unit Price incl. VAT

21

Low nut M8

AP8150431

£1,94 Unit Price incl. VAT

22

Bracket

899332

£46,28 Unit Price incl. VAT

23

Screw w/ flange

598839

£1,27 Unit Price incl. VAT

24

Silent-block

894228

£18,80 Unit Price incl. VAT

25

Washer

AP8150018

£1,88 Unit Price incl. VAT

26

Hex socket screw

AP8152112

£1,58 Unit Price incl. VAT

27

Exhaust valve actuator

2D000064

Not Available

28

Heat protection

890928

£12,92 Unit Price incl. VAT

29

Screw w/ flange M6x30

AP8152281

£1,80 Unit Price incl. VAT

30

Air box spacer

AP8134640

£4,93 Unit Price incl. VAT

31

T bush *

AP8121725

£1,88 Unit Price incl. VAT

32

Rubber spacer *

AP8120223

£2,74 Unit Price incl. VAT

33

Spacer

840509

£5,14 Unit Price incl. VAT

34

Gas trasmission return

896141

Not Available

35

Gas trasmission delivery

896142

Not Available

36

Hose clamp

845978

£8,57 Unit Price incl. VAT

37

exhaust valve actuator cover

899524

£10,01 Unit Price incl. VAT

38

Spacer

AP8120253

£1,66 Unit Price incl. VAT

39

Screw w/ flange M6x35

AP8152282

£1,27 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
