Engine displacement
1000
2
Model
TUONO
3
Year
2009
4
Trim
RSV 1000 Tuono
5
Parts Catalog
Clutch pump
6
Parts Diagram
Parts Catalog
Connecting rod - rear shock abs.
by
Cylinder with piston
Clutch pump
1
2
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
Oil tank plate
AP8134898
Not Available
2
Gasket
AP8121915
Not Available
3
Oil pipe screw
852702
Not Available
3
Rear brake pump union
AP8113594
£26,09 Unit Price incl. VAT
4
screw
AP8133597
Not Available
5
Air bleed valve
AP8133595
£12,07 Unit Price incl. VAT
6
Bleed valve cap
AP8113230
£66,14 Unit Price incl. VAT
7
Clutch lever
AP8118718
Not Available
8
Rearview mirror base
AP8168217
Not Available
9
Clutch pump
AP8176194
Not Available
10
Clutch pipe
852705
£145,76 Unit Price incl. VAT
10
Clutch pipe
AP8133857
Not Available
11
Rear brake pump union
AP8213057
£28,61 Unit Price incl. VAT
12
Lever pin
AP8113719
Not Available
13
Clutch command cylinder
AP8106381
Not Available
14
Rubber pipe
AP8144151
Not Available
15
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
16
Hex socket screw M5x10
AP8150538
£1,94 Unit Price incl. VAT
16
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
17
Self-locking nut M5
AP8152306
Not Available
17
Cap nut
AP8150539
£3,84 Unit Price incl. VAT
18
Gasket
AP8106935
£33,25 Unit Price incl. VAT
19
Rubber spacer
AP8144158
£8,17 Unit Price incl. VAT
20
Guard
AP8133522
£22,30 Unit Price incl. VAT
21
Clutch switch+harness
AP8127320
Not Available
22
Hex socket screw M6x45
AP0241821
Not Available
23
Tank cap
AP8113553
£23,46 Unit Price incl. VAT
24
Oil tank
AP8106382
£50,06 Unit Price incl. VAT
25
Cap screw
AP8213299
£3,38 Unit Price incl. VAT
26
Hose clamp
AP8104606
£1,70 Unit Price incl. VAT
27
Oil tank support
AP8154089
Not Available
28
Hex socket screw M6x12
AP8150537
£1,27 Unit Price incl. VAT
28
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
29
Spring washer 6,4x11x0,5*
AP8150429
Not Available
30
Curved spring washer 5,3x10x0,5
AP8150272
£3,66 Unit Price incl. VAT
31
Air bleed valve
852703
£22,40 Unit Price incl. VAT

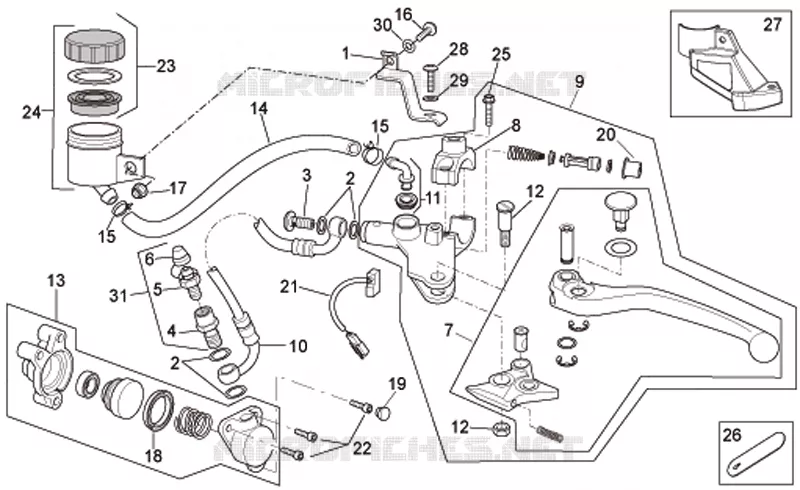

Find the detailed Clutch pump APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
