Engine displacement
1000
2
Model
TUONO
3
Year
2006
4
Trim
RSV 1000 Tuono
5
Parts Catalog
Electrical system I
6
Parts Diagram
Parts Catalog
Rear mudguard
by
Front body - Front fairing
Electrical system I
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
1
Relay 12V-30A
AP8224462
£24,32 Unit Price incl. VAT
2
Rubber spacer *
AP8220283
£2,39 Unit Price incl. VAT
3
Wiring
AP8127711
Not Available
4
Voltage regulator
AP8127144
Not Available
5
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
6
T bush *
AP8121075
£1,96 Unit Price incl. VAT
7
Voltage regulator support
AP8146914
Not Available
8
Hex socket screw M6x40
AP8152003
£1,27 Unit Price incl. VAT
9
Bush
AP8121032
£3,88 Unit Price incl. VAT
10
Clip M6
AP8102376
Not Available
11
Main wiring harness
AP8127704
Not Available
12
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
13
Horn
AP8127727
Not Available
14
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
15
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
16
Coil holder
AP8134889
Not Available
17
HT coil
AP0266070
Not Available
18
HT wire
AP0266145
Not Available
19
HT wire
AP0266140
Not Available
20
Int.sparkplug cap
AP0265246
Not Available
21
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
22
Rubber spacer
AP8220238
£2,48 Unit Price incl. VAT
23
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
24
Spacer 6,5x10x19*
AP8121020
£3,78 Unit Price incl. VAT
25
Hex socket screw M6x50
AP8150202
£2,17 Unit Price incl. VAT
26
T bush *
AP8121075
£1,96 Unit Price incl. VAT

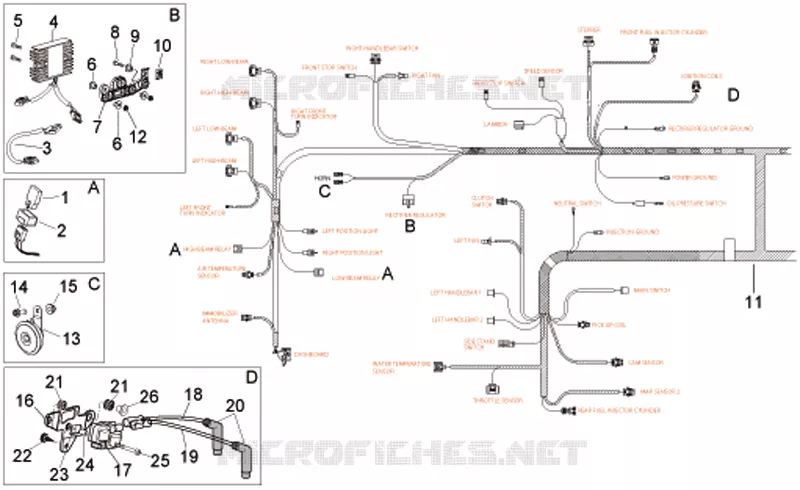

Find the detailed Electrical system I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
