1
Engine displacement
50
2
Model
TUAREG
3
Year
1990
4
Trim
TUAREG RALLY
5
Parts Catalog
Body
6

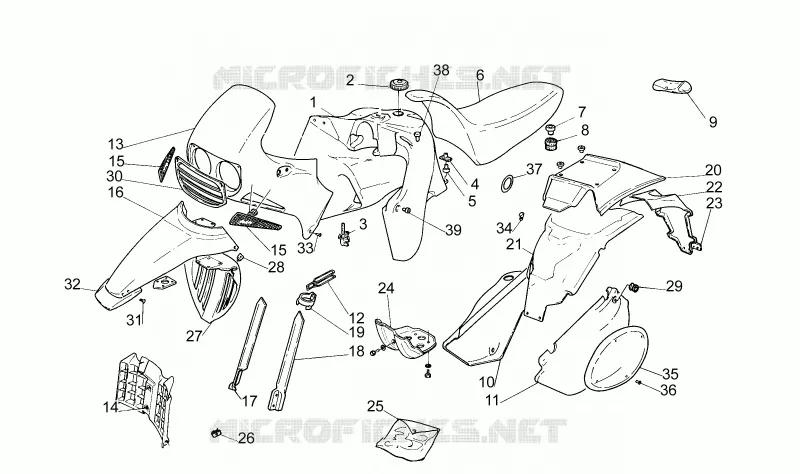

Parts Diagram
Parts Catalog
Gear box selector
by
Front fork IM A
Body
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Fuel tank, red
AP8230508
Not Available
1
Fuel tank, green
AP8230597
Not Available
2
Tank cap
AP8120610
Not Available
3
Fuel cock
AP8201393
Not Available
4
Tank rubber
AP8120557
£17,03 Unit Price incl. VAT
5
Spacer bush
AP8101112
Not Available
6
Saddle, blue
AP8229065
Not Available
6
Saddle, violet
AP8229073
Not Available
7
T bush *
AP8221056
£18,50 Unit Price incl. VAT
8
Rubber spacer
AP8120311
£3,73 Unit Price incl. VAT
9
Toolkit
AP8201152
Not Available
10
RH side panel, lilac
AP8230510
Not Available
10
RH side panel, white
AP8230598
Not Available
11
LH side panel, lilac
AP8230511
Not Available
11
LH side panel, white
AP8230600
Not Available
12
Fairlead
AP8134180
Not Available
13
Front fairing, green
AP8131267
Not Available
13
Front fairing, red
AP8230627
Not Available
14
Water cooler shield, black
AP8230576
Not Available
15
Grid
AP8130848
Not Available
16
Front mudguard, green
AP8126260
Not Available
16
Front mudguard, red
AP8126146
Not Available
17
RH sleeve guard, white
AP8226116
Not Available
18
LH sleeve guard, white
AP8226117
Not Available
19
RH hose clamp
AP8130771
Not Available
20
Rear mudguard, white
AP8126248
Not Available
20
Rear mudguard, lilac
AP8126172
Not Available
21
Shock absorber guard, black
AP8226135
Not Available
22
Number plate holder, black 4 holes
AP8226119
Not Available
23
Reflector
AP8112560
£25,21 Unit Price incl. VAT
24
Sump guard, grey
AP8230506
Not Available
25
Decal set
AP8211813
Not Available
25
Decal set
AP8211823
Not Available
26
Clip
AP8102046
Not Available
27
Rear splash guard, green
AP8126262
Not Available
27
Grille, red
AP8126147
Not Available
28
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
29
Rubber spacer *
AP8120223
£2,74 Unit Price incl. VAT
30
Taillight guard, red
AP8130847
Not Available
30
Grille, green
AP8131269
Not Available
31
Rivet, red
AP8220170
Not Available
32
Splash guard, red
AP8126177
Not Available
32
Front splash guard, green
AP8126264
Not Available
33
Rubber w/ insert
AP8120531
£6,84 Unit Price incl. VAT
34
Battery hook
AP8101313
Not Available
35
Numberplate, yellow
AP8130940
Not Available
36
Rivet, white
AP8220213
Not Available
37
Elastic
AP8120177
£6,95 Unit Price incl. VAT
38
T bush *
AP8121725
£1,88 Unit Price incl. VAT
39
Bush
AP8121757
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
