1
Engine displacement
850
2
Model
SRV
3
Year
2012
4
Trim
SRV 4T 8V E3
5
Parts Catalog

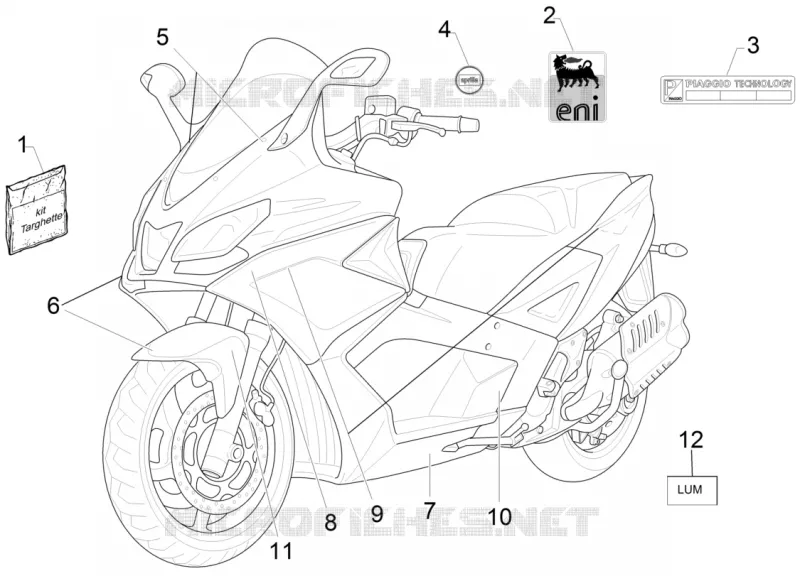

Plates - Emblems
6
Parts Diagram
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
by
Transmission assembly
Plates - Emblems
1
2
3
4
5
6
7
8
9
10
11
12
1
Trimmings kit
67532900A1
£103,37 Unit Price incl. VAT
1
Trimmings kit
67532900A2
£103,37 Unit Price incl. VAT
2
"""Eni"" label"
895839
Not Available
3
Name plate "Piaggio Technology"
672200
Not Available
4
"Aprilia" dataplate
673983
£15,20 Unit Price incl. VAT
5
Name plate "ATC SRV"
CM18270700A2
£16,92 Unit Price incl. VAT
5
Name plate "ATC SRV"
CM18270700A1
£21,30 Unit Price incl. VAT
5
Name plate "ATC SRV"
CM18270700A3
£21,30 Unit Price incl. VAT
6
Mudguard front flag label "aprilia"
CM18270300A3
£10,98 Unit Price incl. VAT
6
STICKER
CM18270300A1
£10,98 Unit Price incl. VAT
6
STICKER
CM18270300A2
£10,98 Unit Price incl. VAT
7
STICKER
CM18270100A1
Not Available
7
STICKER
CM18270100A2
Not Available
7
Name plate "aprilia"
CM18270100A3
£18,94 Unit Price incl. VAT
8
Left/right side fairing band label
CM18270200A3
£31,54 Unit Price incl. VAT
8
STICKER
CM18270200A2
£25,04 Unit Price incl. VAT
8
STICKER
CM18270200A1
£25,04 Unit Price incl. VAT
9
STICKER
CM18270500A2
£57,54 Unit Price incl. VAT
9
STICKER
CM18270500A1
£57,54 Unit Price incl. VAT
9
Left/right tail fairing label "SRV850"
CM18270500A3
£72,42 Unit Price incl. VAT
10
Plate set
CM18270400A3
£9,12 Unit Price incl. VAT
10
Plate set
CM18270400A1
£9,12 Unit Price incl. VAT
10
Name plate dx-sx
CM18270400A2
Not Available
11
"ABS" plate
CM18270600A1
£9,12 Unit Price incl. VAT
11
"ABS" plate
CM18270600A2
£9,12 Unit Price incl. VAT
11
Name plate "ABS"
CM18270600A3
£9,12 Unit Price incl. VAT
12
Op's handbook I-D-F-E-UK-NL EN-PT-DE-ES-DA-EL
677539
Not Available
12
Op's handbook I-D-F-E-UK-NL I-F-D-E-NL-UK
677538
Not Available
12
Op's handbook I-D-F-E-UK-NL J-UK
1Q000242
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
