1
Engine displacement
750
2
Model
DORSODURO
3
Year
2013
4
Trim
Dorsoduro Factory ABS
5
Parts Catalog

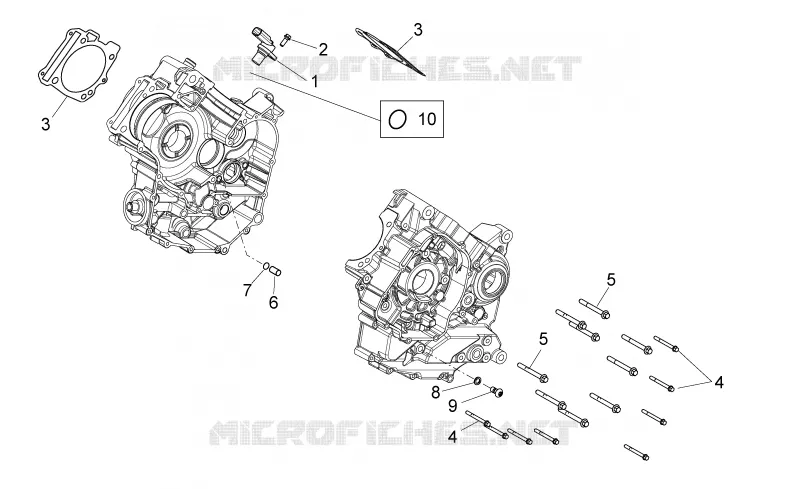

Crankcases II
6
Parts Diagram
Parts Catalog
Clutch II
by
Cooling system
Crankcases II
1
2
3
3
4
4
5
5
6
7
8
9
10
1
Phase/revolution sensor
832963
Not Available
2
Screw w/ flange
872432
£1,27 Unit Price incl. VAT
3
Cylinder base gasket 0,6
CM154102
£31,30 Unit Price incl. VAT
3
Cylinder base gasket 0,5
CM154104
£13,26 Unit Price incl. VAT
3
Cylinder base gasket 0,4
CM154101
£10,96 Unit Price incl. VAT
4
Screw w/ flange
849911
Not Available
5
Screw w/ flange
848465
£2,06 Unit Price incl. VAT
6
Pin 6,5x9,5x15
239388
Not Available
7
Gasket ring OR
834317
£1,08 Unit Price incl. VAT
8
Washer 10.5X16X2.5
486075
£1,32 Unit Price incl. VAT
9
Special screw
849244
£6,43 Unit Price incl. VAT
10
O-ring
430044
£0,98 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
