Engine displacement
750
2
Model
DORSODURO
3
Year
2011
4
Trim
Dorsoduro Factory ABS
5
Parts Catalog
Front cylinder timing system
6
Parts Diagram
Parts Catalog
Front master cilinder I
by
Water pump
Front cylinder timing system
1
2
3
3
4
5
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
17
1
Front intake camshaft
873960
Not Available
2
Front exhaust camshaft
873961
Not Available
3
Axial lock plate
874176
Not Available
4
Timing system gear cpl.
874596
Not Available
5
Front timing system gear cpl.
849909
Not Available
6
Spacer screw
974228
£12,19 Unit Price incl. VAT
7
Thrust washer
874744
£3,77 Unit Price incl. VAT
8
Nut M15x1 DX
874751
£16,04 Unit Price incl. VAT
9
Special screw
874591
Not Available
10
Safety washer
849817
£3,72 Unit Price incl. VAT
11
Gasket ring
873233
£1,27 Unit Price incl. VAT
12
Cylinder head assy.
849213
Not Available
12
Cylinder head assy.
82970R
Not Available
12
Cylinder head assy.
83000R2
Not Available
13
Torx convex big end screw
878439
£2,03 Unit Price incl. VAT
13
Screw w/ flange
B016191
£1,58 Unit Price incl. VAT
14
Camshaft chain
849827
£171,90 Unit Price incl. VAT
15
Chain guide plate
871798
£17,38 Unit Price incl. VAT
16
Chain tensioner rod
871748
£23,32 Unit Price incl. VAT
17
Screw
874185
£2,36 Unit Price incl. VAT

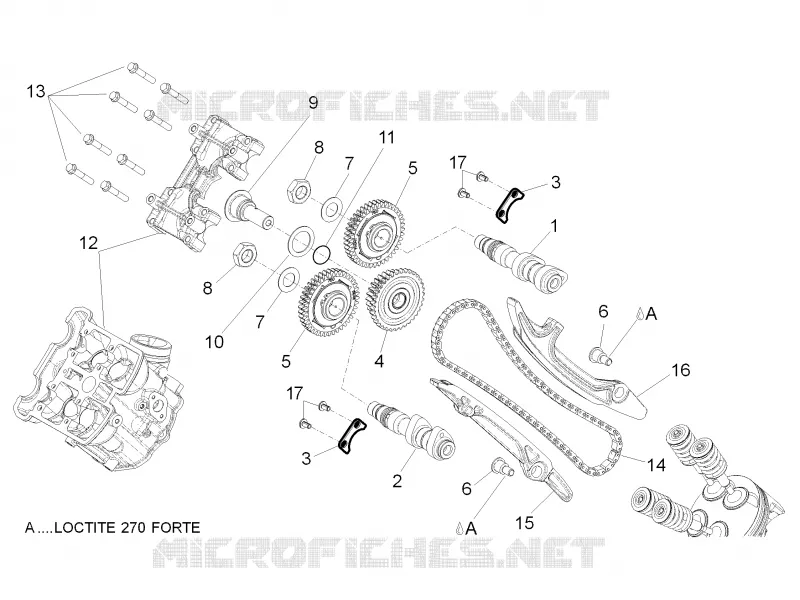

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
