Parts Catalog
Throttle body (Ditech)
6
Parts Diagram
Parts Catalog
Front body and technical decal
by
Hong Zengr clutch

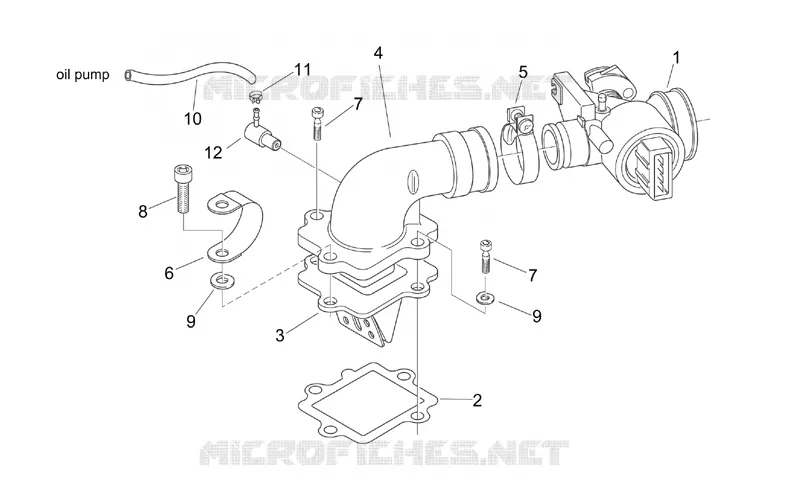

Throttle body (Ditech)
1
2
3
4
5
6
7
7
8
9
9
10
11
12
1
Throttle body cpl.
AP3ACA000132
Not Available
2
Fuel intake valve gasket
AP3AVA000063
Not Available
3
Reed valve assy
AP3AEA000002
£36,24 Unit Price incl. VAT
4
Intake manifold
AP3ABA000642
Not Available
5
Hose clamp
AP2FDN000201
£4,38 Unit Price incl. VAT
6
Hose clamp
AP3AAN000054
£3,47 Unit Price incl. VAT
7
Shear rivet
AP3AVN000086
Not Available
8
screw
AP4ADN000014
£2,99 Unit Price incl. VAT
9
Washer
AP4DFN000033
Not Available
10
Oil pipe
AP2HAN000224
Not Available
11
Hose clamp
AP2FBN000034
Not Available
12
Brass oil anti-return valve
AP2HAA000487
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
