1
Engine displacement
750
2
Model
DORSODURO
3
Year
2011
4
Trim
Dorsoduro Factory ABS
5
Parts Catalog

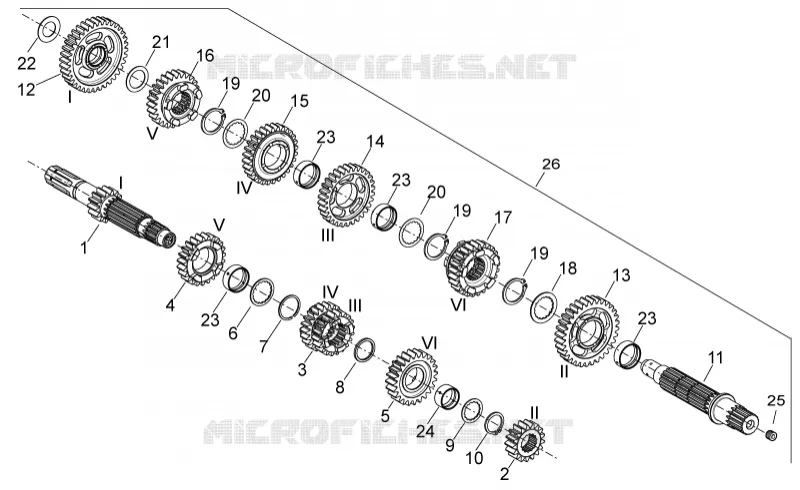

Gear box
6
Parts Diagram
Parts Catalog
Decal -Toolkit
by
Oil pump
Gear box
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
20
20
21
22
23
23
23
23
24
25
26
1
Primary gear shaft Z=14
849293
£431,11 Unit Price incl. VAT
2
2nd pinion gear Z=17
849295
£41,77 Unit Price incl. VAT
3
3rd-4th pinion gear Z=20/22
849296
£103,85 Unit Price incl. VAT
4
5th pinion gear Z=23
849297
£76,70 Unit Price incl. VAT
5
6th pinion gear Z=24
849298
£76,70 Unit Price incl. VAT
6
Clearance washer
849424
£3,05 Unit Price incl. VAT
7
Snap ring
849426
£4,51 Unit Price incl. VAT
8
Clearance washer
974163
£23,60 Unit Price incl. VAT
9
Clearance washer
849396
£3,25 Unit Price incl. VAT
10
Snap ring
974165
£2,95 Unit Price incl. VAT
11
Gearbox driven shaft
849301
£238,48 Unit Price incl. VAT
12
1st wheel gear Z=36
849312
£121,57 Unit Price incl. VAT
13
2nd wheel gear Z=32
849303
£55,80 Unit Price incl. VAT
14
3rd wheel gear Z=30
849304
£56,83 Unit Price incl. VAT
15
4th wheel gear Z=28
849305
£55,80 Unit Price incl. VAT
16
5th wheel gear Z=26
849306
£203,08 Unit Price incl. VAT
17
6th wheel gear Z=25
849307
£135,37 Unit Price incl. VAT
18
Clearance washer
849309
£3,13 Unit Price incl. VAT
19
Snap ring
849311
£3,29 Unit Price incl. VAT
20
Clearance washer
849310
£6,13 Unit Price incl. VAT
21
Clearance washer
974167
£5,83 Unit Price incl. VAT
22
Clearance washer
974166
£5,83 Unit Price incl. VAT
23
Moveable bush
849308
£31,02 Unit Price incl. VAT
24
Moveable bush
974162
£34,78 Unit Price incl. VAT
25
Plug M10x1,25
842507
£1,99 Unit Price incl. VAT
26
Gear box assy
82935R
£1 171,91 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
