Engine displacement
50
2
Model
SR
3
Year
2001
4
Trim
SR H2O (Ditech+Carb.)
5
Parts Catalog
Crank-case (Ditech)
6
Parts Diagram
Parts Catalog
Drive shaft
by
Water pump
Crank-case (Ditech)
1
2
3
3
4
5
5
6
7
8
9
10
11
12
13
13
14
15
16
16
17
18
19
20
21
22
23
24
1
Pin
AP3FCN000269
£10,10 Unit Price incl. VAT
2
Crankcase assy
AP1BHA000159
Not Available
2
Crankcase assy
AP1BHA000624
Not Available
2
Crankcase assy
AP1BHA000706
Not Available
3
Pin
AP3FCN000268
Not Available
4
Drive plate
AP3HAA000044
Not Available
5
Bearing d17x35x10
AP4GAN000083
Not Available
6
Silent-block
AP3HAN000056
£26,41 Unit Price incl. VAT
7
Screw w/ flange
AP4AUN000011
Not Available
8
screw
AP4ADN000013
Not Available
9
Oil seal 29x42x6
AP3EBN000047
Not Available
10
Bearing d22x50x14
AP4GAN000026
£31,49 Unit Price incl. VAT
11
O-ring d2,4x161
AP3EAN000048
£4,94 Unit Price incl. VAT
12
Bearing fixing plate
AP3HAA000068
Not Available
13
Hex socket screw
AP4ADN000016
£2,17 Unit Price incl. VAT
14
Transmission cover
AP3HZA000152
Not Available
15
Gasket
AP3HVA000160
Not Available
16
Hex socket screw
AP4ADN000007
Not Available
17
Hex socket screw
AP4ADN000178
Not Available
18
Hex socket screw
AP4ADN000179
Not Available
19
screw
AP4AHN000067
Not Available
20
Screw w/ flange
AP3AUN000062
Not Available
21
Aluminium washer
AP4EEN000063
Not Available
22
Aluminium washer
AP4EEN000037
Not Available
23
Bush
AP3QAA000039
Not Available
24
Paper gasket
AP3NVA000627
Not Available

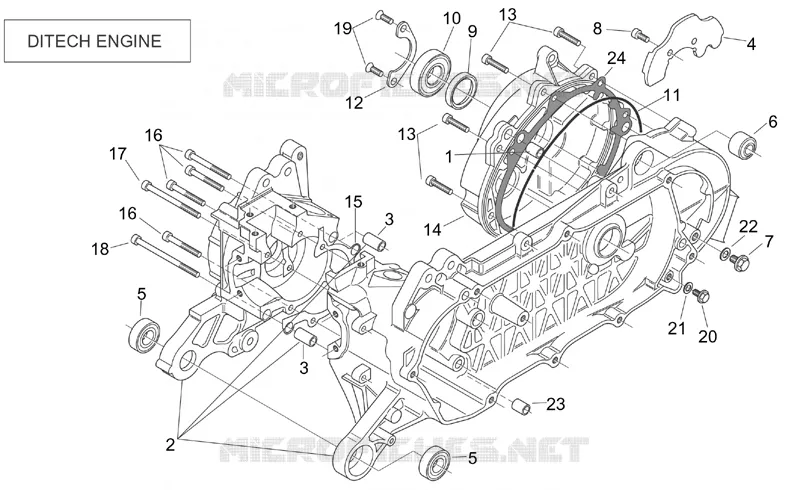

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
