1
Engine displacement
50
2
Model
SR
3
Year
2001
4
Trim
SR H2O (Ditech+Carb.)
5
Parts Catalog

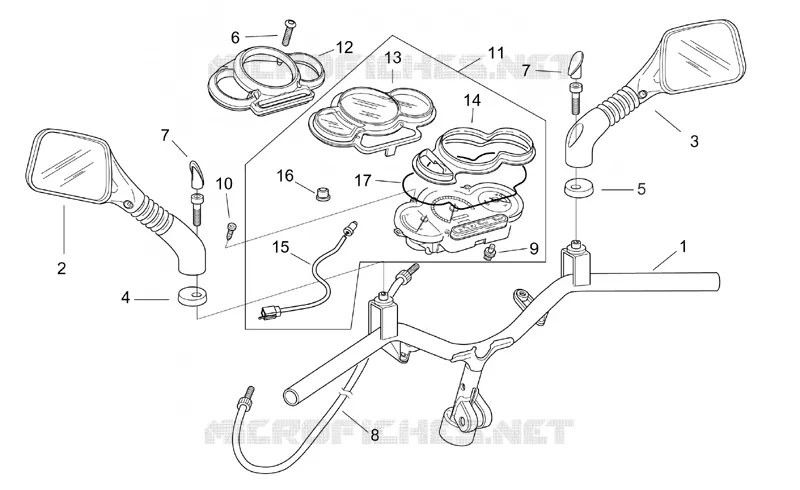

Handlebar - Dashboard
6
Parts Diagram
Parts Catalog
Front lights
by
Starter motor
Handlebar - Dashboard
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
1
Handlebar w phor ctng.
AP8218210
£290,18 Unit Price incl. VAT
2
LH rearview mirror
AP8201976
Not Available
3
RH rearview mirror
AP8201975
£36,10 Unit Price incl. VAT
4
LH mirror rubber
AP8220454
£3,68 Unit Price incl. VAT
5
RH mirror rubber
AP8220453
£8,66 Unit Price incl. VAT
6
Spec. self-tap screw 3,5x20
AP8221242
£1,21 Unit Price incl. VAT
7
RH + LH rearview mirror plug
AP8202071
£8,11 Unit Price incl. VAT
8
Odometer cable
AP8214163
Not Available
9
Lampholder, complete
AP8124762
Not Available
10
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
11
Dashboard complete
AP8224402
Not Available
11
Dashboard complete
AP8224521
Not Available
11
Dashboard complete
AP8224484
Not Available
11
Dashboard complete
AP8224321
Not Available
11
Dashboard complete
AP8224485
£92,29 Unit Price incl. VAT
12
Fascia panel w/out lenses
AP8249766
Not Available
13
Dashboard lens prot.
AP8224344
£28,67 Unit Price incl. VAT
14
Lighting shield
AP8224345
£21,12 Unit Price incl. VAT
15
Dashboard cable
AP8224369
Not Available
16
Cover
AP8224368
£3,78 Unit Price incl. VAT
17
O-ring
AP8220551
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
