1
Engine displacement
50
2
Model
SR
3
Year
2001
4
Trim
SR H2O (Ditech+Carb.)
5
Parts Catalog

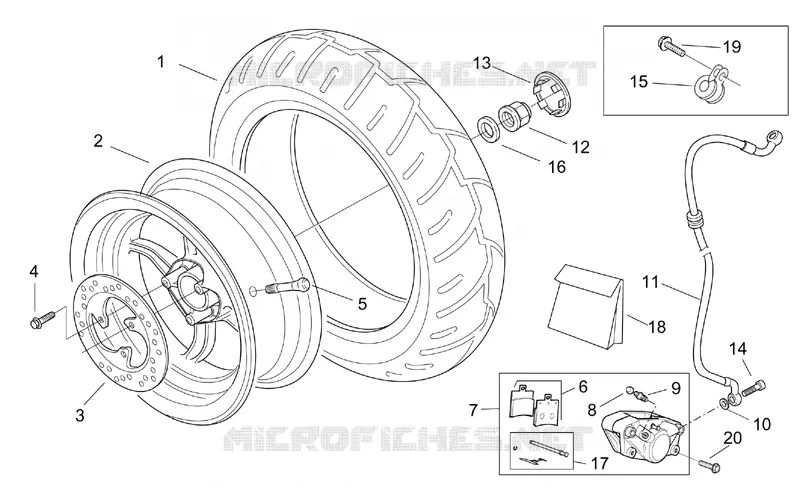

Rear wheel - disc brake
6
Parts Diagram
Parts Catalog
Front wheel
by
Drive shaft
Rear wheel - disc brake
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Tyre
0000000
Not Available
2
Rear wheel, black
AP8208785
Not Available
2
Rear wheel Grey/GoldSand
AP8208827
Not Available
2
Rear wheel, blue
AP8208709
Not Available
2
Rear wheel Gold
AP8208894
Not Available
2
Rear wheel, grey
AP8208710
Not Available
2
Rear wheel Grey/GoldSand
AP8208897
Not Available
2
Rear wheel Gold
AP8208828
Not Available
2
Rear wheel, blue
AP8208909
Not Available
3
Brake disc D190
AP8213231
£46,99 Unit Price incl. VAT
4
Hex socket screw M8x25
AP8225358
Not Available
5
Tubeless tyre valve
AP8201546
£5,35 Unit Price incl. VAT
6
Pads pair
AP8113869
£38,44 Unit Price incl. VAT
7
Rear brake caliper, black
AP8213479
Not Available
7
Rear brake caliper, gold
AP8213488
Not Available
8
Bleed valve cap
AP8113005
£5,94 Unit Price incl. VAT
9
Air bleed valve
AP8113006
£28,27 Unit Price incl. VAT
10
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
11
Rear brake hose
AP8213474
Not Available
12
DAX flange nut M14x1,5
AP8152244
£3,62 Unit Price incl. VAT
13
Rear wheel plug
AP8220579
£3,77 Unit Price incl. VAT
13
Rear wheel plug
AP8208824
Not Available
13
Rear wheel plug
AP8220571
£3,77 Unit Price incl. VAT
13
Rear wheel plug
AP8258565
Not Available
13
Rear wheel plug
AP8208812
£5,94 Unit Price incl. VAT
14
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
15
Brake hose hanger
AP8134167
£18,38 Unit Price incl. VAT
16
Spring washer 14,5x24
AP8150471
£4,14 Unit Price incl. VAT
17
Pin+Brake spring
AP8113871
£13,56 Unit Price incl. VAT
18
Brake caliper rev. kit
AP8213457
Not Available
19
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
20
Screw w/ flange M8x30
AP8152288
£2,20 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
