1
Engine displacement
50
2
Model
SR
3
Year
1998
4
Trim
SR AIR
5
Parts Catalog

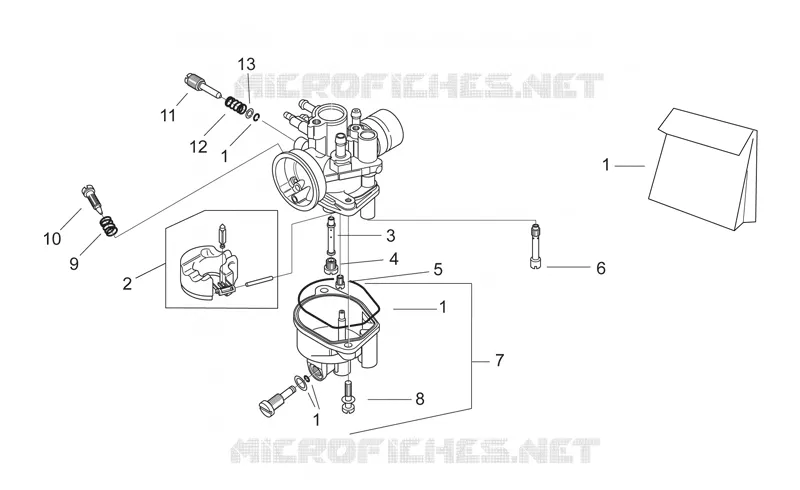

Carburettor II
6
Parts Diagram
Parts Catalog
Carburettor I
by
Flywheel
Carburettor II
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Gasket envelope
AP8206886
Not Available
2
Float kit
AP8206890
Not Available
3
Needle valve GA211
AP8206797
Not Available
3
Needle valve GA209
AP8206707
Not Available
3
Needle valve GA210
AP8206796
£12,01 Unit Price incl. VAT
4
Main jet 72
AP8222288
Not Available
4
Main jet 62
AP8222682
£9,13 Unit Price incl. VAT
4
Main jet 64
AP8206912
Not Available
4
Main jet 78
AP8222275
Not Available
4
Main jet 70
AP8222479
Not Available
4
Main jet 82
AP8222680
Not Available
5
Idle jet 32
AP8206902
Not Available
5
Idle jet 34
AP8222685
Not Available
5
Idle jet 36
AP8206914
Not Available
5
Idle jet 40
AP8206913
Not Available
6
Starter jet 45
AP8206904
£9,68 Unit Price incl. VAT
7
Float chamber
AP8206889
Not Available
8
Float chamber fixing screw
AP8206887
Not Available
9
Adj.min.eng.spd air scr.spring
AP8206894
Not Available
10
Adj.min.eng.speed air screw
AP8206708
Not Available
10
Adj.min.eng.speed air screw
AP8206907
Not Available
11
Gas valve adj.screw
AP8206895
Not Available
12
Gas valve adj.screw spring
AP8206896
Not Available
13
Flat washer
AP8206897
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
