1
Engine displacement
750
2
Model
DORSODURO
3
Year
2012
4
Trim
Dorsoduro Factory ABS
5
Parts Catalog
Saddle support
6

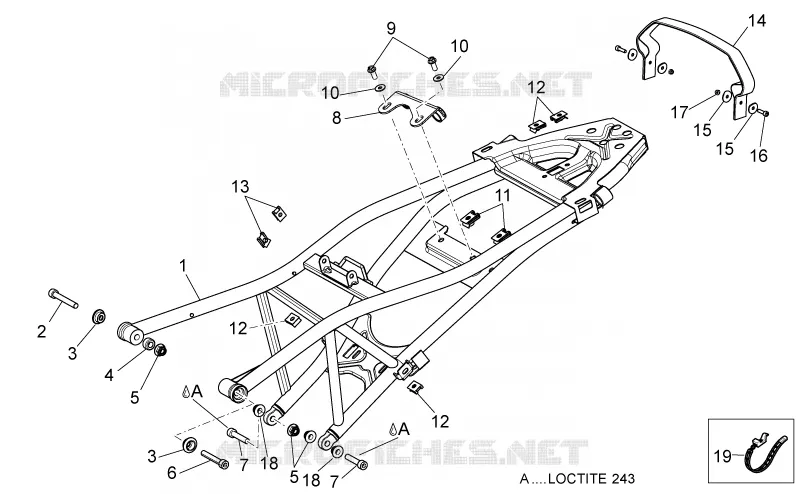

Parts Diagram
Parts Catalog
Dashboard
by
Front fork
Saddle support
1
2
3
3
4
5
5
6
7
7
8
9
10
10
11
12
12
12
13
14
15
15
16
17
18
18
19
1
Saddle support
85495200XE3
Not Available
2
Hex socket screw
478761
£1,57 Unit Price incl. VAT
3
Bush
860909
£10,03 Unit Price incl. VAT
4
Spacer
854962
£10,03 Unit Price incl. VAT
5
Nut
AP8152350
£1,26 Unit Price incl. VAT
6
Hex socket screw M8x55
AP8150046
£1,85 Unit Price incl. VAT
7
Hex socket screw M8x40
AP8150171
Not Available
8
Exhaust pipe support clamp
851789
£54,64 Unit Price incl. VAT
9
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
10
Washer
AP8150018
£1,88 Unit Price incl. VAT
11
Spring plate M8
575268
£2,24 Unit Price incl. VAT
12
Spring plate M6
254485
£1,64 Unit Price incl. VAT
13
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
14
Pillion seat strap
890566
Not Available
15
Plate
890486
£7,85 Unit Price incl. VAT
16
Hex socket screw M6x20
AP8150044
£1,27 Unit Price incl. VAT
17
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
18
Washer 8,4x16x1,6
AP8150017
£1,88 Unit Price incl. VAT
19
Hose clamp
GU06609600
£2,39 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
