1
Engine displacement
300
2
Model
SPORT-CITY
3
Year
2012
4
Trim
Sport City Street 4T 4V E3
5
Parts Catalog

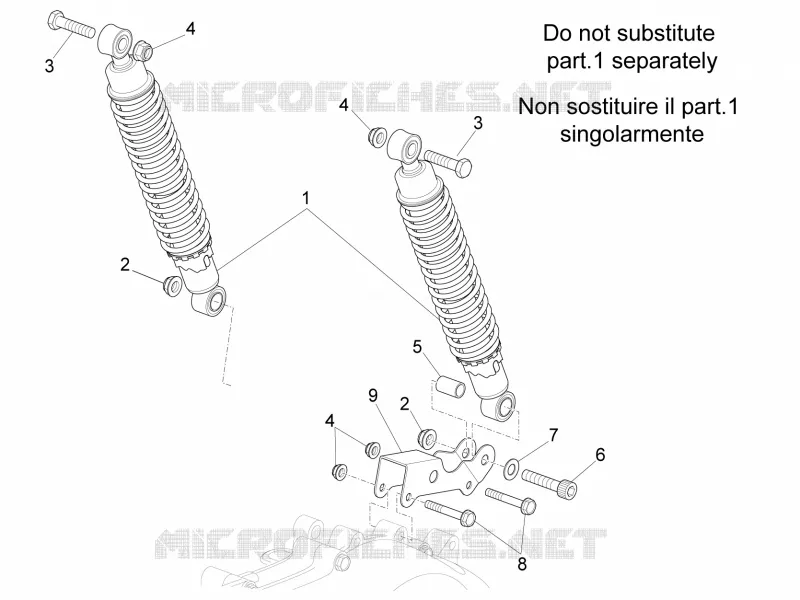

Rear shock absorber
6
Parts Diagram
Parts Catalog
Ignition unit
by
Engine
Rear shock absorber
1
2
2
3
3
4
4
4
5
6
7
8
9
1
Shock absorber
AP8163551
Not Available
2
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
3
Screw w/ flange M8x40
AP8152290
£2,63 Unit Price incl. VAT
4
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
5
Shock absorber bush
AP8161031
£3,91 Unit Price incl. VAT
6
Hex socket screw M10x45
AP8150038
£3,82 Unit Price incl. VAT
7
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
8
Screw w/ flange M8x50
AP8152292
£1,94 Unit Price incl. VAT
9
Shock absorber support
AP8134974
£13,54 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
