1
Engine displacement
50
2
Model
SPORT-CITY
3
Year
2009
4
Trim
Sport City ONE 4T 2V E2
5
Parts Catalog

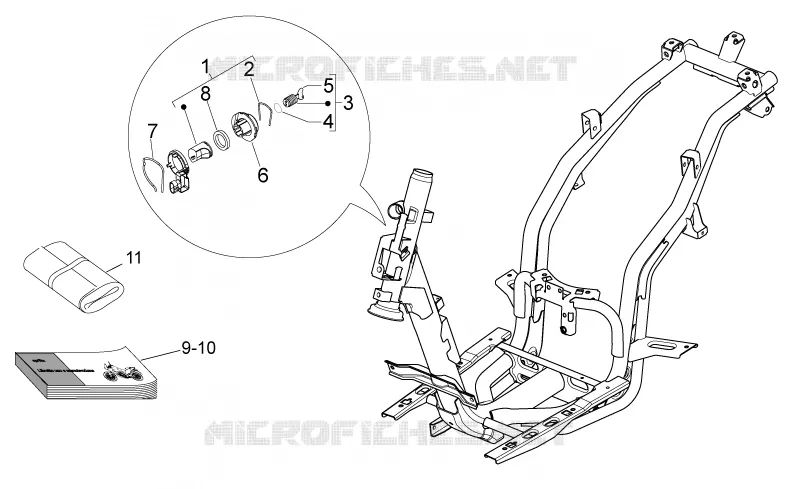

Lock hardware kit
6
Parts Diagram
Parts Catalog
Engine
by
Crankcase
Lock hardware kit
1
2
3
4
5
6
7
8
9
10
11
1
Complete lock block
298903
Not Available
2
Cylinder retainer spring
298838
£1,69 Unit Price incl. VAT
3
Lock cylinder
860193
£23,27 Unit Price incl. VAT
4
Gasket ring
298731
£1,00 Unit Price incl. VAT
5
Key
860691
£6,47 Unit Price incl. VAT
6
Lock body
298581
Not Available
7
Spring
253937
£2,00 Unit Price incl. VAT
8
Flat washer
298594
£1,24 Unit Price incl. VAT
9
Op's handbook I-D-F-E-UK-NL I-D-F-E
854050
Not Available
10
Op's handbook I-D-F-E-UK-NL UK-NL-GR-DK-SF-F
854086
Not Available
10
Op's handbook I-D-F-E-UK-NL UK-NL-GR-DK-SF-F
854051
Not Available
11
Toolkit
601645
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
