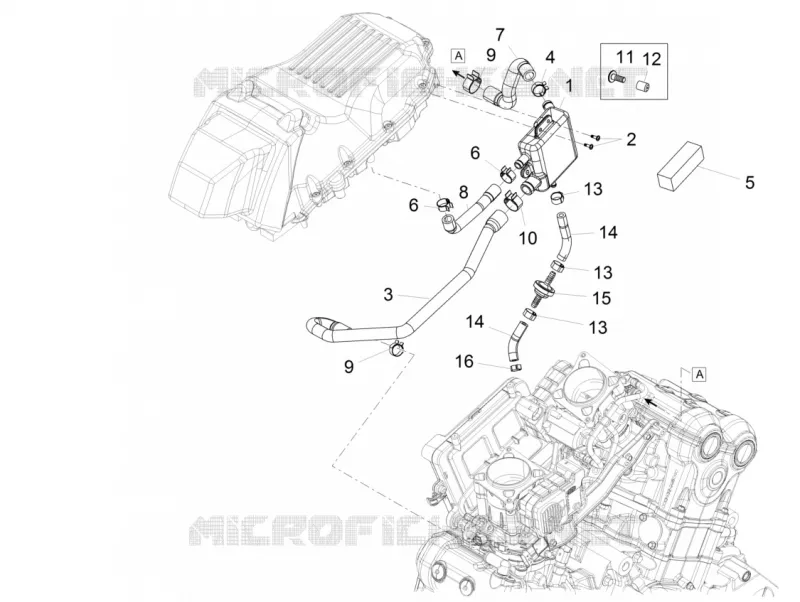

Blow-by system
9
10
7
6
6
5
4
3
2
1
16
15
14
14
13
13
13
12
11
9
8
1
Blow-By tank
2B000696
Not Available
2
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
3
Front Blow-by breather pipe
2B000198
£21,31 Unit Price incl. VAT
4
White hose clip D17,5x8
AP8102349
£10,54 Unit Price incl. VAT
5
Blow-by filter
897351
£6,52 Unit Price incl. VAT
6
Hose clip D16,5X6,6
AP8102903
£18,68 Unit Price incl. VAT
7
Rear Blow-by breather pipe
2B000199
£17,03 Unit Price incl. VAT
8
Blow-by breather pipe
2B000200
£14,27 Unit Price incl. VAT
9
Hose clip 20x8
AP8102786
£3,46 Unit Price incl. VAT
10
Hose clip D22x8,6*
AP8201169
£5,05 Unit Price incl. VAT
11
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
12
Rubber spacer
AP8120712
£1,60 Unit Price incl. VAT
13
Hose clamp 12,5x8
AP8102239
£3,06 Unit Price incl. VAT
14
Oil pipe 6x12
AP8144015
£70,14 Unit Price incl. VAT
15
Anti-return valve
AP8104996
£34,28 Unit Price incl. VAT
16
Hose clip, green D11x6,6x1
AP8120446
£3,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
