Parts Catalog

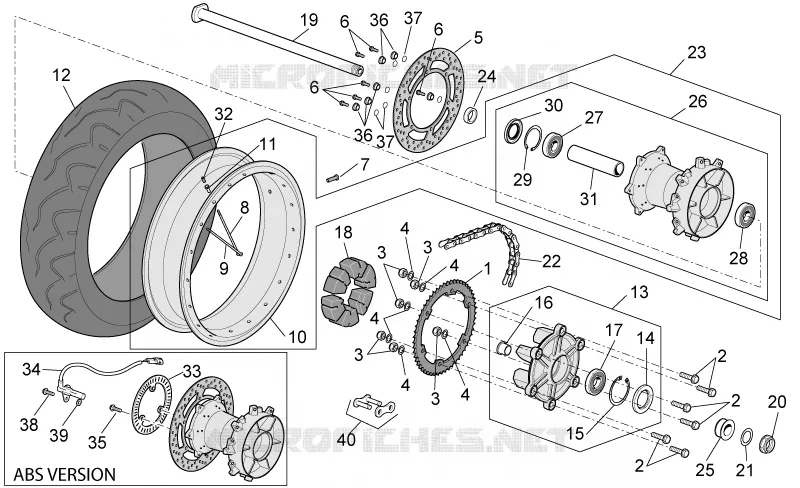

Rear wheel
6
Parts Diagram
Parts Catalog
Air box II
by
Central body
Rear wheel
40
39
38
37
37
36
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
6
6
5
4
4
4
4
4
3
3
3
3
2
2
2
1
1
Chain ring
AP8107129
Not Available
2
Screw w/ flange M10x35
AP8152318
£3,62 Unit Price incl. VAT
3
Nut
AP8152242
£17,48 Unit Price incl. VAT
4
Curved spring washer *
AP8150292
£1,88 Unit Price incl. VAT
5
Rear brake disc
AP8113808
Not Available
5
Rear brake disc
AP8133746
Not Available
6
screw
AP8150510
£2,20 Unit Price incl. VAT
6
Screw w/ flange
AP8152285
£1,88 Unit Price incl. VAT
7
Tubeless tyre valve
AP8101744
£14,65 Unit Price incl. VAT
8
Spoke 3,5
AP8108787
Not Available
9
Spoke
AP8108805
Not Available
10
Wheel D17"
AP8108788
Not Available
11
Nipples
AP8108953
£2,54 Unit Price incl. VAT
12
Tyre
0000000
Not Available
13
Crown holder cpl.
AP8125794
£82,38 Unit Price incl. VAT
14
Gasket ring
AP8125878
£22,90 Unit Price incl. VAT
15
Circlip
AP8125879
Not Available
16
Spacer
AP8125880
£19,60 Unit Price incl. VAT
17
Bearing
AP8125881
£140,17 Unit Price incl. VAT
18
Flexible coupling rubber
AP8125798
Not Available
19
Rear wheel spindle
AP8125796
£45,89 Unit Price incl. VAT
20
Rear wheel spindle nut
AP8125763
£16,00 Unit Price incl. VAT
21
Wheel pin washer
AP8125687
£1,27 Unit Price incl. VAT
22
Chain
AP8107130
Not Available
23
Rear wheel(complete)
AP8125877
Not Available
23
Rear wheel(complete)
AP8128103
Not Available
24
Spacer
AP8125799
£9,43 Unit Price incl. VAT
25
Spacer
AP8125800
£49,33 Unit Price incl. VAT
26
Rear hub
AP8125907
Not Available
26
Rear hub
AP8125911
£105,91 Unit Price incl. VAT
27
Bearing 6304-2RS 20x52x15
AP8125872
Not Available
28
Bearing 6204-2RS 20x47x14
AP8125873
Not Available
29
Inside circlip D52
AP8125874
Not Available
30
Oil seal 30x52x7
AP8125875
£27,11 Unit Price incl. VAT
31
Spacer
AP8125876
£55,36 Unit Price incl. VAT
32
Dowel
AP8150491
£1,27 Unit Price incl. VAT
33
Phonic wheel
AP8128004
£99,38 Unit Price incl. VAT
34
Sensor abs
AP8127469
£146,02 Unit Price incl. VAT
35
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
36
Bush
AP8121640
£13,26 Unit Price incl. VAT
37
Ring
AP8121641
£4,32 Unit Price incl. VAT
38
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
39
Thrust washer
AP8161025
Not Available
40
Connecting link
AP8107150
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
