1
Engine displacement
125
2
Model
SPORT-CITY
3
Year
2006
4
Trim
Sport City E2
5
Parts Catalog
Air box
6
Parts Diagram
Parts Catalog
Top box support
by
Drive shaft

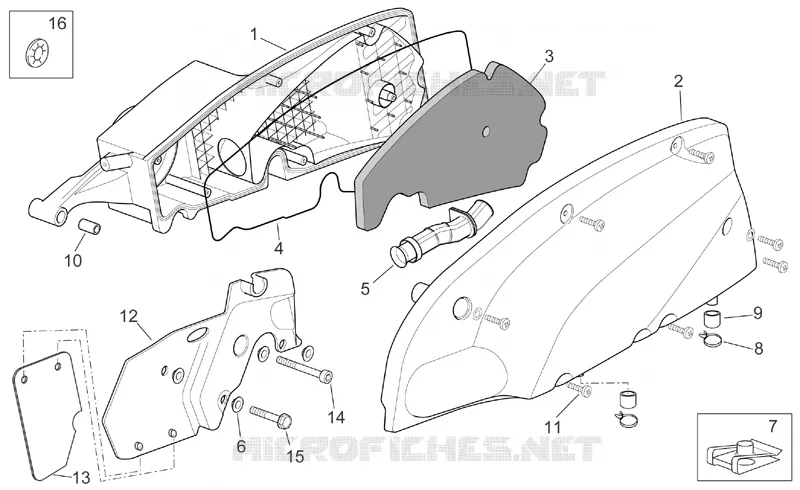

Air box
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Filter housing base
AP8178901
£35,08 Unit Price incl. VAT
2
Filter housing cover
AP8178902
£35,82 Unit Price incl. VAT
3
Air filter
AP8104878
Not Available
4
Gasket D3
AP8120615
£2,59 Unit Price incl. VAT
5
Intake hose
AP8144699
Not Available
6
Bush
AP8121032
£3,88 Unit Price incl. VAT
7
Clip M6
AP8102376
Not Available
8
Hose clamp
AP8580219
Not Available
9
Cap
AP8144701
Not Available
10
Spacer
AP8161034
Not Available
11
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
12
Air box panel
AP8178845
Not Available
13
Air box protection
AP8117247
Not Available
14
Hex socket screw M6x50
AP8150202
£2,17 Unit Price incl. VAT
15
Screw w/ flange M6x30
AP8152281
£1,80 Unit Price incl. VAT
16
Washer for shafts D5
AP8150450
£2,20 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
