1
Engine displacement
50
2
Model
SONIC
3
Year
2004
4
Trim
Sonic H2O
5
Parts Catalog
Connecting rod and shock absorber
6
Parts Diagram
Parts Catalog
Front fork
by
Front body - Front fairing

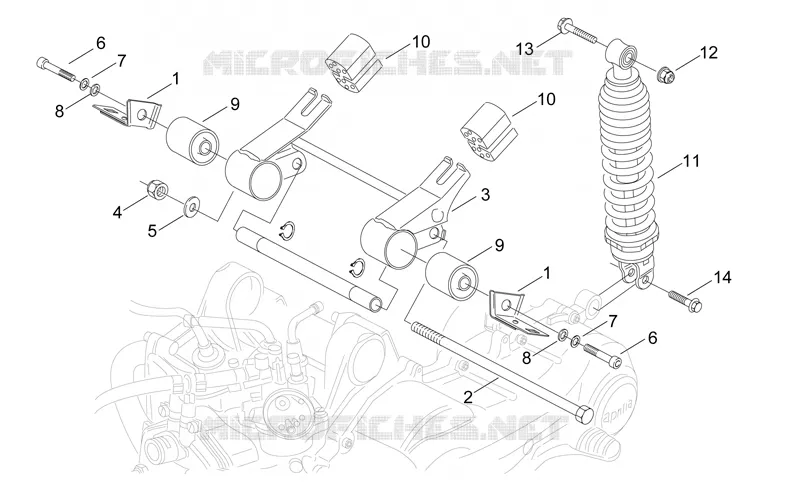

Connecting rod and shock absorber
1
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
12
13
14
1
Footrest support
AP8234115
Not Available
2
Pin M12
AP8221160
£18,62 Unit Price incl. VAT
3
Engine connecting element
AP8232841
Not Available
4
Low self-locking nut M12*
AP8150432
£2,18 Unit Price incl. VAT
5
Washer 12,2x22x2
AP8152018
£9,28 Unit Price incl. VAT
6
Hex socket screw M10x65
AP8150392
£2,08 Unit Price incl. VAT
7
Curved spring washer *
AP8150210
£1,27 Unit Price incl. VAT
8
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
9
Silent-block
AP8220377
Not Available
10
Fase drift
AP8220399
£10,48 Unit Price incl. VAT
11
Shock absorber
AP8203873
Not Available
11
Shock absorber
AP8203742
Not Available
12
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
13
Screw w/ flange
AP8152325
£2,66 Unit Price incl. VAT
14
Screw w/ flange
AP8152289
£1,27 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
