1
Engine displacement
1000
2
Model
SL-FALCO
3
Year
2002
4
Trim
SL Falco
5
Parts Catalog

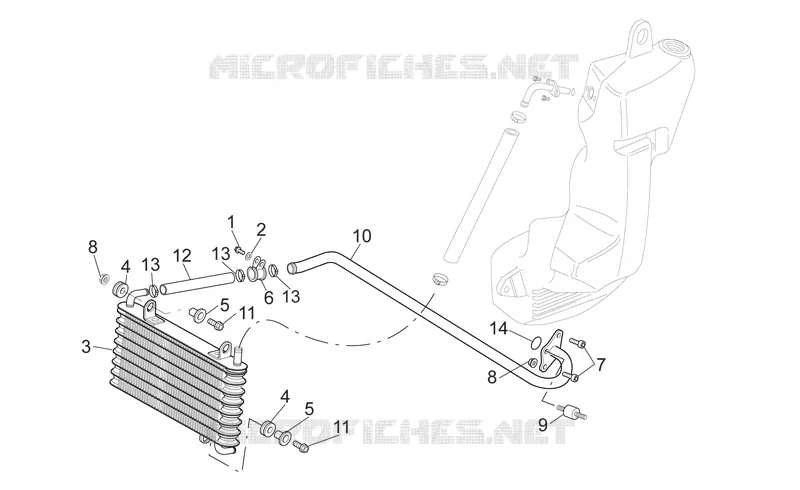

Oil radiator
6
Parts Diagram
Parts Catalog
Oil tank
by
Air box
Oil radiator
1
2
3
4
4
5
5
6
7
8
8
9
10
11
11
12
13
13
13
14
1
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
2
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
3
Oil cooler cpl.
AP8102907
Not Available
4
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
5
T bush
AP8221023
£1,64 Unit Price incl. VAT
6
Hose clamp
AP8102731
£14,76 Unit Price incl. VAT
7
Hex socket screw M6x16
AP8150137
£1,27 Unit Price incl. VAT
8
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
9
Silent-block
AP8144061
£11,28 Unit Price incl. VAT
10
Oil pipe
AP8106388
£72,70 Unit Price incl. VAT
11
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
12
Oil pipe 12x19
AP8106389
Not Available
13
White hose clip D17,5x8
AP8102349
£10,54 Unit Price incl. VAT
14
O-ring 115
AP8144008
£2,66 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
