Parts Catalog
Clutch
6
Parts Diagram
Parts Catalog
Gear box
by
Water pump

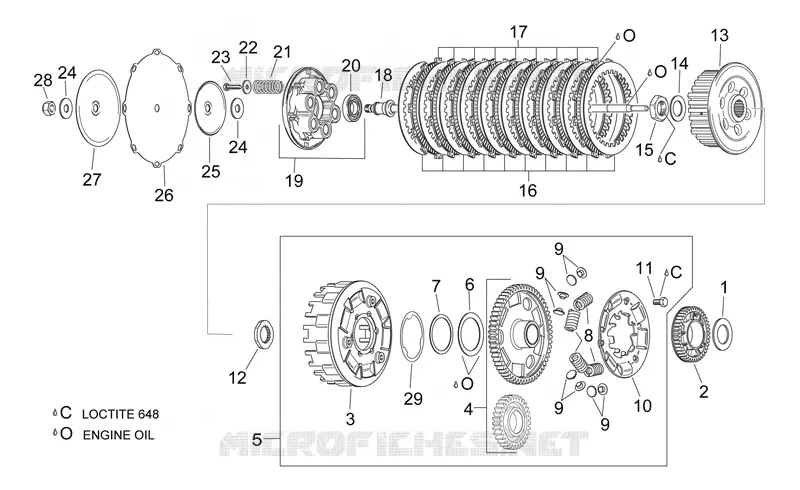

Clutch
1
2
3
4
5
6
7
8
9
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
1
Washer 30,2x50
AP0627260
£16,84 Unit Price incl. VAT
2
Oil pump gear z=42
AP0634470
£93,97 Unit Price incl. VAT
3
Clutch drum
AP0259530
Not Available
4
Primary drive gear
AP0295780
Not Available
5
Primary transm.
AP0295790
Not Available
6
Spring washer 68x52x1,2
AP0239390
Not Available
7
Washer 52x62x1
AP0627140
Not Available
8
Spring
AP0239370
Not Available
9
Bush
AP0247970
Not Available
10
Springholder plate
AP0259580
Not Available
11
screw
AP0940580
Not Available
12
Washer 25x44,4x5
AP0627220
Not Available
13
Clutch hub
AP0259520
Not Available
14
Spring washer 24,5x40
AP0245830
£17,12 Unit Price incl. VAT
15
Nut m24x1,5
AP0242950
Not Available
16
Steel clutch discs 10 pc.
AP8106633
Not Available
17
Lined clutch discs 9 pc.
AP8106634
Not Available
18
Clutch shaft cpl.
AP0220455
Not Available
19
Springholder plate cpl.
AP0259515
Not Available
20
Ball bearing 16004
AP0632130
Not Available
21
Clutch spring
AP0239480
Not Available
22
Washer d6,5
AP0244020
Not Available
23
Hex screw
AP0240036
Not Available
24
Washer 12,2x32x2
AP0227180
£10,10 Unit Price incl. VAT
25
Support disc
AP0627230
Not Available
26
Diaphragm
AP0260890
Not Available
27
Pressure plate
AP0627280
Not Available
28
Nut m12
AP0442130
Not Available
29
Thrust washer
AP0627910
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
