1
Engine displacement
1000
2
Model
SL-FALCO
3
Year
2002
4
Trim
SL Falco
5
Parts Catalog
Foot rests
6

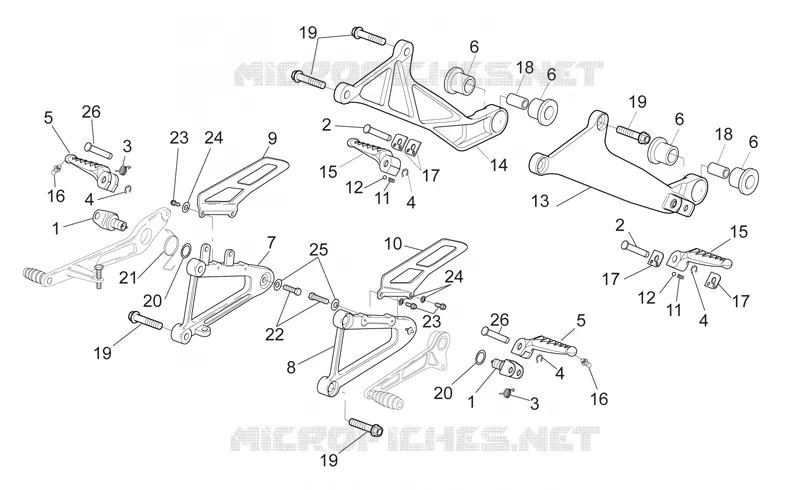

Parts Diagram
Parts Catalog
Frame II
by
Central stand
Foot rests
1
1
2
2
3
3
4
4
4
4
5
5
6
6
6
6
7
8
9
10
11
11
12
12
13
14
15
15
16
16
17
17
17
18
18
19
19
19
19
20
20
21
22
23
23
24
24
25
26
26
1
Brake/gear lever pin
AP8121917
Not Available
2
Footrest pin
AP8121135
Not Available
3
Footrest return spring
AP8121224
£4,21 Unit Price incl. VAT
4
Stop ring
AP8120573
£0,73 Unit Price incl. VAT
5
Front footrest, pair
AP8146341
Not Available
5
Front footrest, pair
AP8146623
Not Available
6
Rubber exhaust
AP8144071
£13,10 Unit Price incl. VAT
7
RH front footrest bracket
AP8134593
Not Available
8
LH front footrest bracket
AP8134594
Not Available
9
RH front footrest guard
AP8146231
Not Available
10
LH front footrest guard
AP8146232
Not Available
11
Coil compress. spring
AP8121133
£3,22 Unit Price incl. VAT
12
Ball D6,35
AP8101861
£0,36 Unit Price incl. VAT
13
LH footrest support BLACK
AP8134746
Not Available
13
LH footrest support GREY
AP8146788
Not Available
13
LH footrest support
AP8146009
Not Available
14
RH footrest support
AP8146008
Not Available
14
RH footrest support GREY
AP8146789
Not Available
14
RH footrest support BLACK
AP8134747
Not Available
15
Rear footrests, pair
AP8146624
Not Available
15
Rear footrests, pair
AP8146172
Not Available
16
Footrest pin
AP8134644
£10,28 Unit Price incl. VAT
17
Footrest plate
AP8134451
£5,77 Unit Price incl. VAT
18
Spacer *
AP8121773
£1,94 Unit Price incl. VAT
19
Screw w/ flange M8x30
AP8152288
£2,20 Unit Price incl. VAT
20
Belleville spring
AP8150446
Not Available
21
Rear brake lever spring
AP8121410
Not Available
22
Hex screw M8x30
AP8150447
£1,21 Unit Price incl. VAT
23
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
24
Curved spring washer 5,3x10x0,5
AP8150272
£3,66 Unit Price incl. VAT
25
Washer 8,5x15x0,8
AP8150376
£1,76 Unit Price incl. VAT
26
Footrest pin
AP8121918
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
