1
Engine displacement
1000
2
Model
SL-FALCO
3
Year
2003
4
Trim
SL Falco
5
Parts Catalog

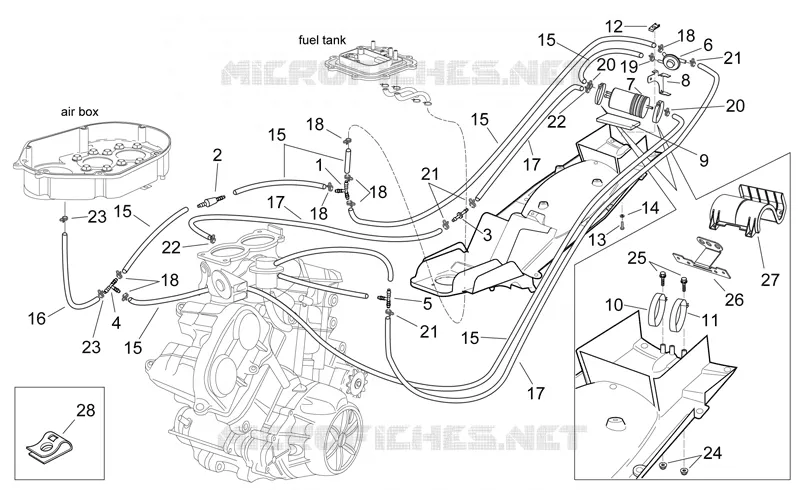

Fuel vapour recover system
6
Parts Diagram
Parts Catalog
Fuel tank
by
Saddle
Fuel vapour recover system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
15
15
15
16
17
17
17
18
18
18
18
18
19
20
20
21
21
21
22
22
23
23
24
25
26
27
28
1
3-way union
AP8120116
£33,00 Unit Price incl. VAT
2
Anti-return valve
AP8102985
Not Available
3
Choke hold
AP8121267
£29,15 Unit Price incl. VAT
4
3-way union
AP8202154
Not Available
5
3-way union
AP8102727
£6,10 Unit Price incl. VAT
6
"Purge" valve
AP8106776
£76,50 Unit Price incl. VAT
7
Carbon filter
AP8102678
£41,63 Unit Price incl. VAT
8
Valve support clamp
AP8134659
Not Available
9
Adhesive sponge 6x30
AP8117041
£32,51 Unit Price incl. VAT
10
Hose clamp d.76
AP8102688
£65,77 Unit Price incl. VAT
11
Hose clamp d.80,5
AP8102719
£84,05 Unit Price incl. VAT
12
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
13
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
14
Washer 5,5x15x1,6*
AP8150013
£1,61 Unit Price incl. VAT
15
Fuel pipe 5,5x10
AP8120952
Not Available
16
pipe 9x14
AP8120987
£24,38 Unit Price incl. VAT
17
Breather pipe 4x8
AP8220263
Not Available
18
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
19
Hose clamp
AP8102520
£2,08 Unit Price incl. VAT
20
Hose clamp D11,3
AP8102378
£4,01 Unit Price incl. VAT
21
Hose clamp D8
AP8120179
£1,27 Unit Price incl. VAT
22
Hose clamp D9,1*
AP8102377
£2,45 Unit Price incl. VAT
23
Hose clamp
AP8102766
£1,88 Unit Price incl. VAT
24
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
25
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
26
Carbon filter support
AP8104175
Not Available
27
Filter cover
AP8149038
Not Available
28
Clip M6
AP8102376
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
