Air box for APRILIA Shiver from 2016

Free shipping for all orders to United Kingdom over £150! See conditions.

Air box

1

Filter housing base

851577

£57,14 Unit Price incl. VAT

2

Filter housing cover

854946

£31,08 Unit Price incl. VAT

3

Filter housing body

851576

Not Available

4

Air filter

851575

£45,76 Unit Price incl. VAT

5

Intake pipe

858133

£30,28 Unit Price incl. VAT

6

Air intake pipe

851581

£16,57 Unit Price incl. VAT

7

Cover

851685

£15,74 Unit Price incl. VAT

8

Gasket d.5

AP8144245

£2,40 Unit Price incl. VAT

9

Throttle body hose

851570

£23,09 Unit Price incl. VAT

10

Hose clamp SM9C W1 6

854970

£6,54 Unit Price incl. VAT

11

Breather pipe BLOW-BY

851567

Not Available

12

Breather pipe BLOW-BY

851785

£68,24 Unit Price incl. VAT

13

Front preformed pipe

856314

£21,89 Unit Price incl. VAT

14

Rear preformed pipe

856315

£20,98 Unit Price incl. VAT

15

Hose clamp

AP8102520

£2,08 Unit Price incl. VAT

16

Hose clamp D 11,9

AP8201358

£0,60 Unit Price incl. VAT

17

Phillips screw, SWP M5x20

AP8152329

£1,80 Unit Price incl. VAT

18

Air temp. Sensor

GU30729330

£122,47 Unit Price incl. VAT

19

Gasket

GU30027931

£3,25 Unit Price incl. VAT

20

Air pressure sensor

638562

Not Available

21

Self-tap screw 5x14

AP8150509

£1,94 Unit Price incl. VAT

22

Injection wiring

893720

£267,43 Unit Price incl. VAT

23

Gasket D4

890513

£15,78 Unit Price incl. VAT

24

Hose clip D28x8,6*

AP8120536

£3,08 Unit Price incl. VAT

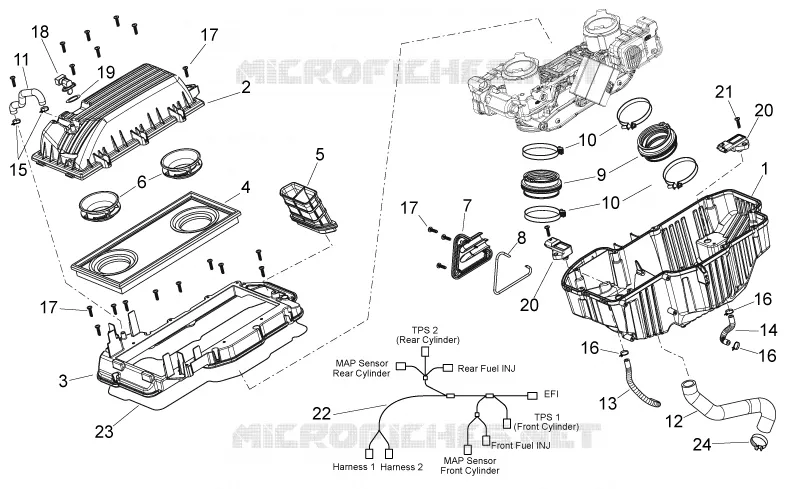

Find the detailed Air box APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
