1
Engine displacement
750
2
Model
SHIVER
3
Year
2016
4
Trim
Shiver
5
Parts Catalog
Crankcases I
6
Parts Diagram
Parts Catalog
Valves cover
by
Gear box selector
Crankcases I
1
2
2
3
3
3
3
3
3
4
4
5
5
6
6
7
8
1
Central crank-case set cat1A
B0151515001
Not Available
1
Central crank-case set cat1B
B0151515002
Not Available
2
Locating dowel (D.15,8)
974051
£8,20 Unit Price incl. VAT
3
Stud bolt M10X1.25X166
877281
Not Available
4
Screw w/ flange
849911
Not Available
5
Screw w/ flange
848465
£2,06 Unit Price incl. VAT
6
Cylinder base gasket 0,6
CM154102
£31,30 Unit Price incl. VAT
6
Cylinder base gasket 0,5
CM154104
£13,26 Unit Price incl. VAT
6
Cylinder base gasket 0,4
CM154101
£10,96 Unit Price incl. VAT
7
Pin 6,5x9,5x15
239388
Not Available
8
Gasket ring OR
834317
£1,08 Unit Price incl. VAT

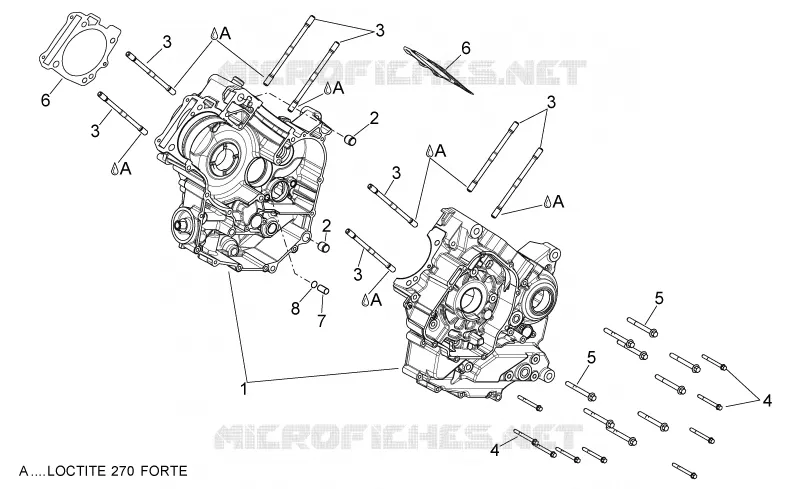

Find the detailed Crankcases I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
