Crankcases II for APRILIA Shiver from 2015

Free shipping for all orders to United Kingdom over £150! See conditions.

Crankcases II

1

Bearing half-shell catC giallo

9745050003

Not Available

1

Bearing half-shell catA rosso

9745050001

Not Available

1

Bearing half-shell catB blu

9745050002

Not Available

1

Bearing half-shell catE verde

9745050004

£67,08 Unit Price incl. VAT

2

Bearing half-shell catB blu

9745060002

Not Available

2

Bearing half-shell catA rosso

9745060001

Not Available

2

Bearing half-shell catC giallo

9745060003

£291,42 Unit Price incl. VAT

2

Bearing half-shell catE verde

9745060004

£67,08 Unit Price incl. VAT

3

Ball bearing 25x62x17

848651

£38,11 Unit Price incl. VAT

4

Ball bearing 30x62x23,8

848475

£108,16 Unit Price incl. VAT

5

Ball bearing 25x42x9

872033

£31,86 Unit Price incl. VAT

6

Ball bearing 20x47x14

848650

Not Available

7

Roller cage 30x37x12

974129

Not Available

8

Roller cage

122671

£6,23 Unit Price incl. VAT

9

Washer

873928

£10,54 Unit Price incl. VAT

9

Washer

873905

£10,52 Unit Price incl. VAT

10

Screw M6x12

AP9150394

£1,21 Unit Price incl. VAT

11

Gasket ring

848474

£27,85 Unit Price incl. VAT

12

Gasket ring 8x16x7

825577

£6,19 Unit Price incl. VAT

13

Gasket ring 14x22x5

974112

Not Available

14

Gasket ring 20x30x5

82897R

£12,89 Unit Price incl. VAT

15

Plug

430136

£1,76 Unit Price incl. VAT

16

Oil sprayer pipe

847537

£31,64 Unit Price incl. VAT

17

Gasket ring

487073

£1,21 Unit Price incl. VAT

18

Hex socket screw M5x16

292889

Not Available

19

Phase/revolution sensor

832963

Not Available

20

Screw w/ flange

872432

£1,27 Unit Price incl. VAT

21

Dowel

873216

Not Available

22

Special screw

849244

£6,43 Unit Price incl. VAT

23

Washer 10.5X16X2.5

486075

£1,32 Unit Price incl. VAT

24

Circlip

006642

Not Available

25

O-ring

478012

£0,86 Unit Price incl. VAT

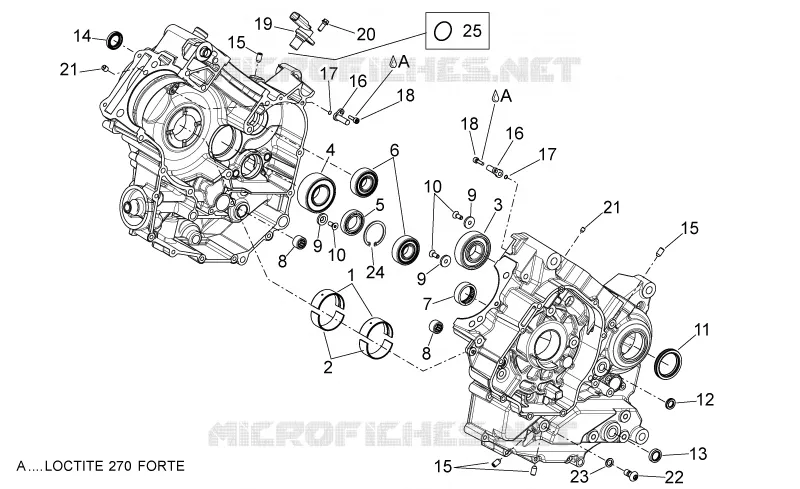

Find the detailed Crankcases II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
