Parts Catalog
Rear cylinder timing system
6
Parts Diagram
Parts Catalog
Water pump II
by
Electrical system I
Rear cylinder timing system
1
2
3
4
5
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
1
Rear intake camshaft
873962
Not Available
2
Rear exhaust camshaft
873963
Not Available
3
Axial lock plate
874176
Not Available
4
Timing system gear cpl.
8745964
£239,44 Unit Price incl. VAT
5
Spacer screw
974228
£12,19 Unit Price incl. VAT
6
Rear timing system gear cpl.
849910
Not Available
7
Thrust washer
849771
£1,12 Unit Price incl. VAT
8
Nut M15x1 SX
849722
£5,32 Unit Price incl. VAT
9
Special screw
874591
Not Available
10
Safety washer
849817
£3,72 Unit Price incl. VAT
11
Gasket ring
873233
£1,27 Unit Price incl. VAT
12
Cylinder head assy.
875413
£811,38 Unit Price incl. VAT
12
Rear cylinder head cpl.
83039R
£620,17 Unit Price incl. VAT
13
Torx convex big end screw
878439
£2,03 Unit Price incl. VAT
14
Camshaft chain
849827
£171,90 Unit Price incl. VAT
15
Chain guide plate
871798
£17,38 Unit Price incl. VAT
16
Chain tensioner rod
871748
£23,32 Unit Price incl. VAT
17
Screw
874185
£2,36 Unit Price incl. VAT

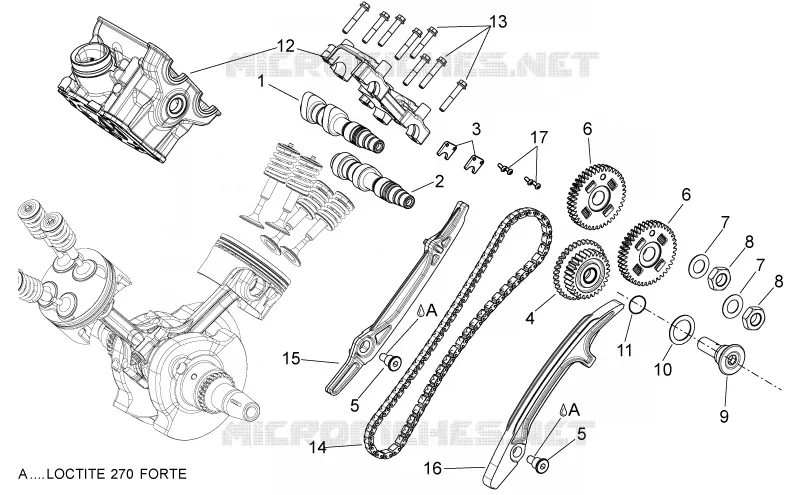

Find the detailed Rear cylinder timing system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
